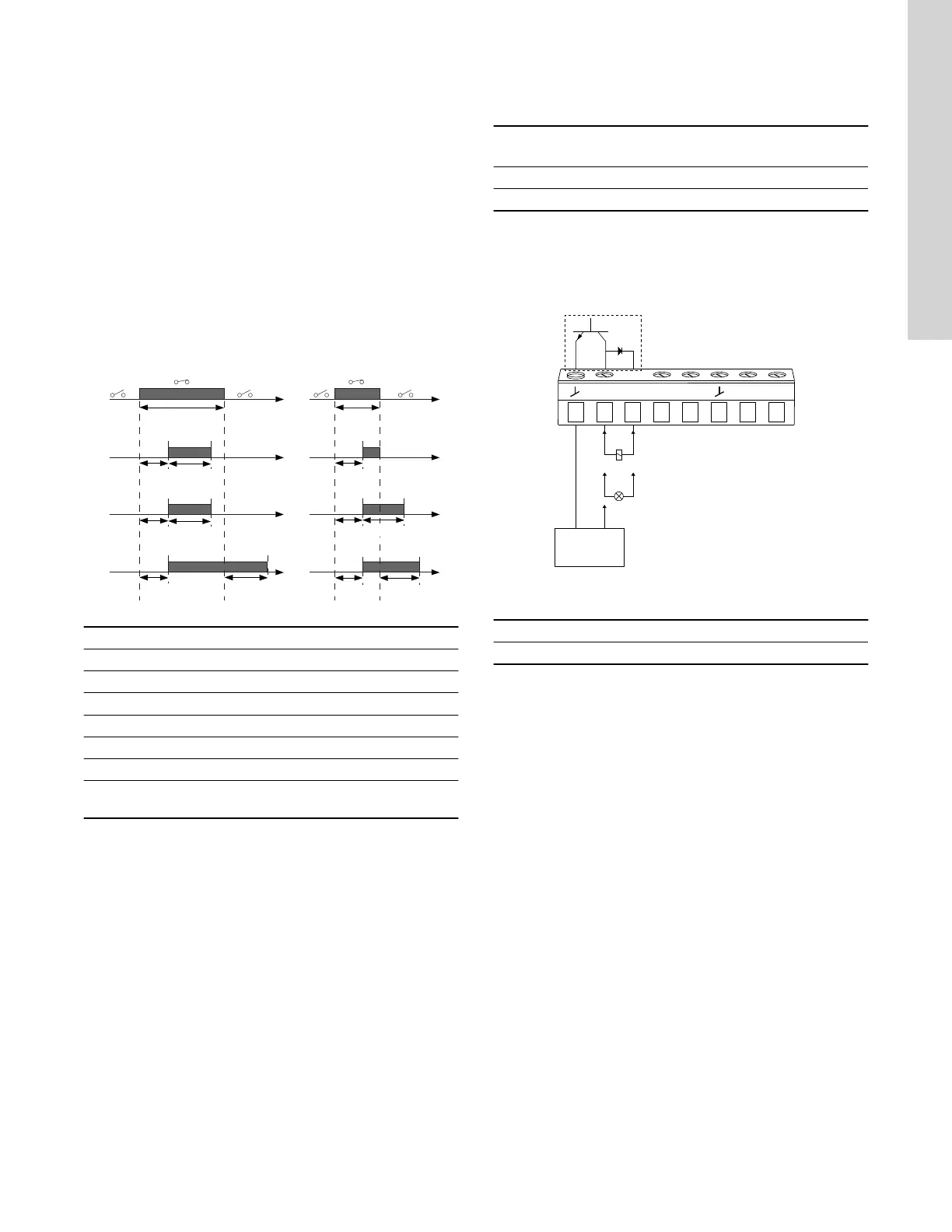

10.11.1 Timer function for a digital input
Activation delay
The activation delay (T1) is the time between the digital signal and
the activation of the selected function.
Range: 0-6000 seconds.
Duration time
Available modes:
• Not active
• Active with interrupt
• Active without interrupt
• Active with after-run.
The duration time (T2) is the time which, together with the mode,
determines how long the selected function is active.
Range: 0 - 15,000 seconds.
T3
T3 > T1 + T2
T3 < T1 + T2
T1 T2
T1 T2
T1 T1 T2T2
T1
T1
T3
T2
1
2
3
4
TM070000
Pos. Description
1 Digital input.
2 Active with interrupt.
3 Active without interrupt.
4 Active with after-run.
T1 Activation delay.
T2 Duration time.
T3
The period of time when the digital input is
activated.
10.12 Digital inputs/outputs
The inputs and outputs available depend on the functional module
fitted in the motor.
Functional
module
Digital input/output 3
(Terminals DI3, GND)
Digital input/output 4
(Terminals DI4, GND)
FM310 • •
FM311 • •
You can select whether the interface is to be used as an input or
output. The output is an open collector. You can connect the open
collector to, for example, an external relay or a controller such as a
PLC.
Wiring example:
TM083187
Digital output, open collector
Pos. Description
1 External controller
Mode
You can set the digital input or output 3 and 4 to act as a digital
input or digital output.
Functions if the digital input or output is set to input:
• Not active
• Ext. stop
• Min.
• Max.
• User defined speed
• External fault
• Alarm resetting
• Dry running
• Accumulated flow
• Reverse rotation
• Predefined setpoint 2 (digital input/output 3)
• Predefined setpoint 3 (digital input/output 4)
• Local motor stop
• Activate output
Functions if the digital input or output is set to output:
• Not active
• Ready
• Alarm
• Operation
• Pump running
• Warning
43
English (US)
