Pos. Description
1
Ethernet cable:
Standard Ethernet cable CAT5/CAT6.
2
Grundfos MI 301:
Separate module enabling radio communication. Use
the module together with a USB cable to connect to a
laptop.
3
Grundfos PC Tool Link:
Separate module enabling wired connection to the
pump. Use the module together with a USB cable to
connect to a laptop.
9.5.1 Communication
When Grundfos GO Link initiates communication with the product, it
is done using different verification methods.

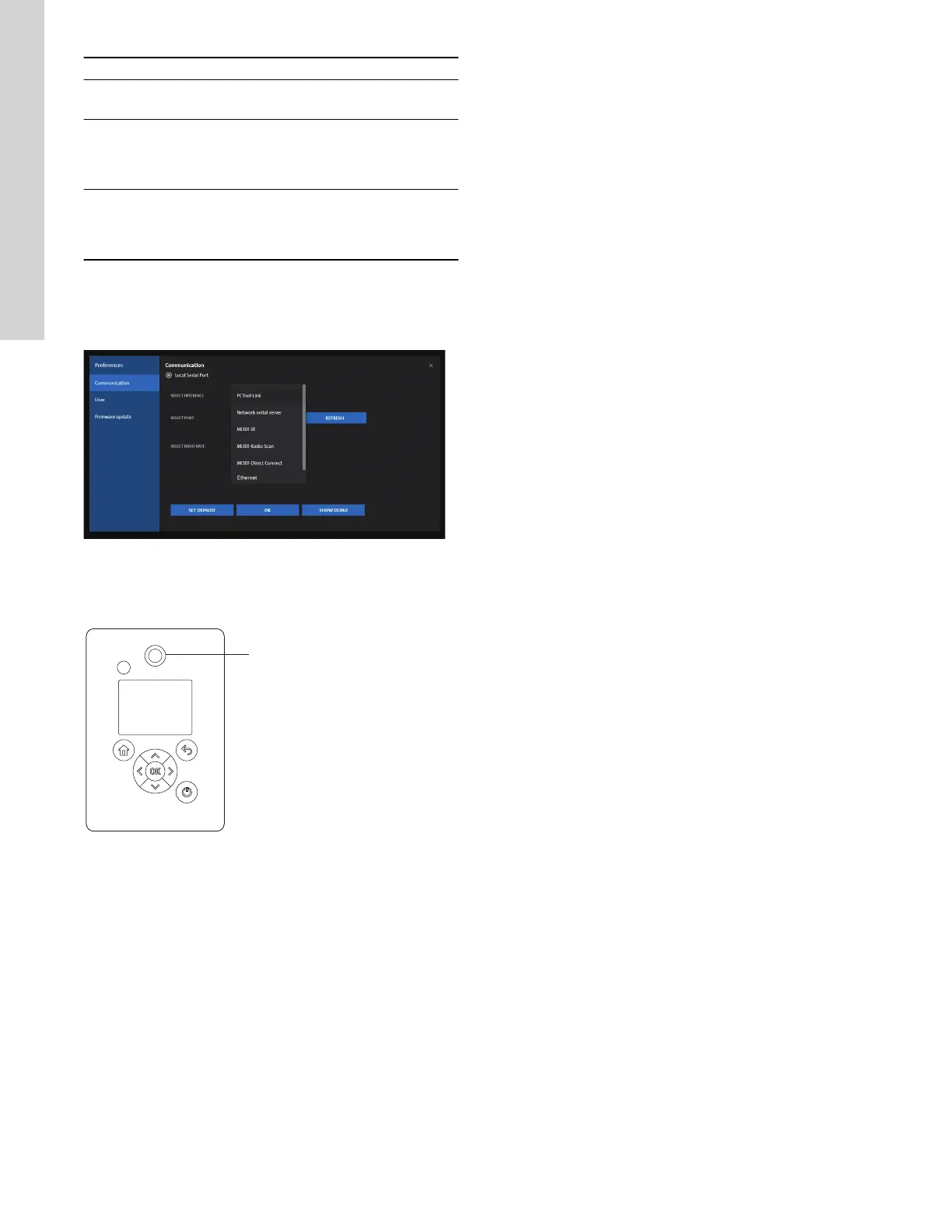

Select the interface connected to the pump:
TM083976
9.5.2 Ethernet
Wired connection can take place using an Ethernet cable
connected directly between a laptop and the RJ45 interface in the
pump or via a local network having both the pump and the laptop
connected to the same network.
To establish a secure connection between the laptop and the pump,
the user will have to go through a verification process.
Connecting to a pump can either happen by scanning for a
connected product, which can be a direct Ethernet connection, or
the pump is connected to a local network or a connection via the
pump IP address.
Initiate connection from Grundfos GO Link and follow onscreen
instructions.
9.5.3 Grundfos MI 301
Radio communication can take place at distances up to 98 ft (30
m). The first time Grundfos GO Link communicates with the
product, you enable communication by pressing the Radio
communication button or OK on the operating panel. Select either
MI301-Direct connect or MI301-Radio. When communication takes
place, the product is recognized by Grundfos GO Link, and you can
connect using Direct connect or Radio scan without having to run a
verification.
9.5.4 Grundfos PC Tool Link
Wired connection can take place using Grundfos PC Tool
connected to the AYB terminals of the pump. Since Grundfos GO
Link is wired to the pump within a short distance, no verification is
needed. A direct connection will be established.
9.6 Grundfos Eye
The operating condition of the motor is indicated by Grundfos Eye on the motor operating panel.
TM084873
Grundfos Eye indicator light (A)
34
English (US)
