9.14 Signal relay (Relay outputs)
The motor has two outputs for potential-free signals
via two internal relays.
Functiona
l module
Signal relay 1
(Terminals NC,
C1, NO)
Signal relay 2
(Terminals NC,
C2, NO)
FM110 • -
FM310 • •
FM311 • •

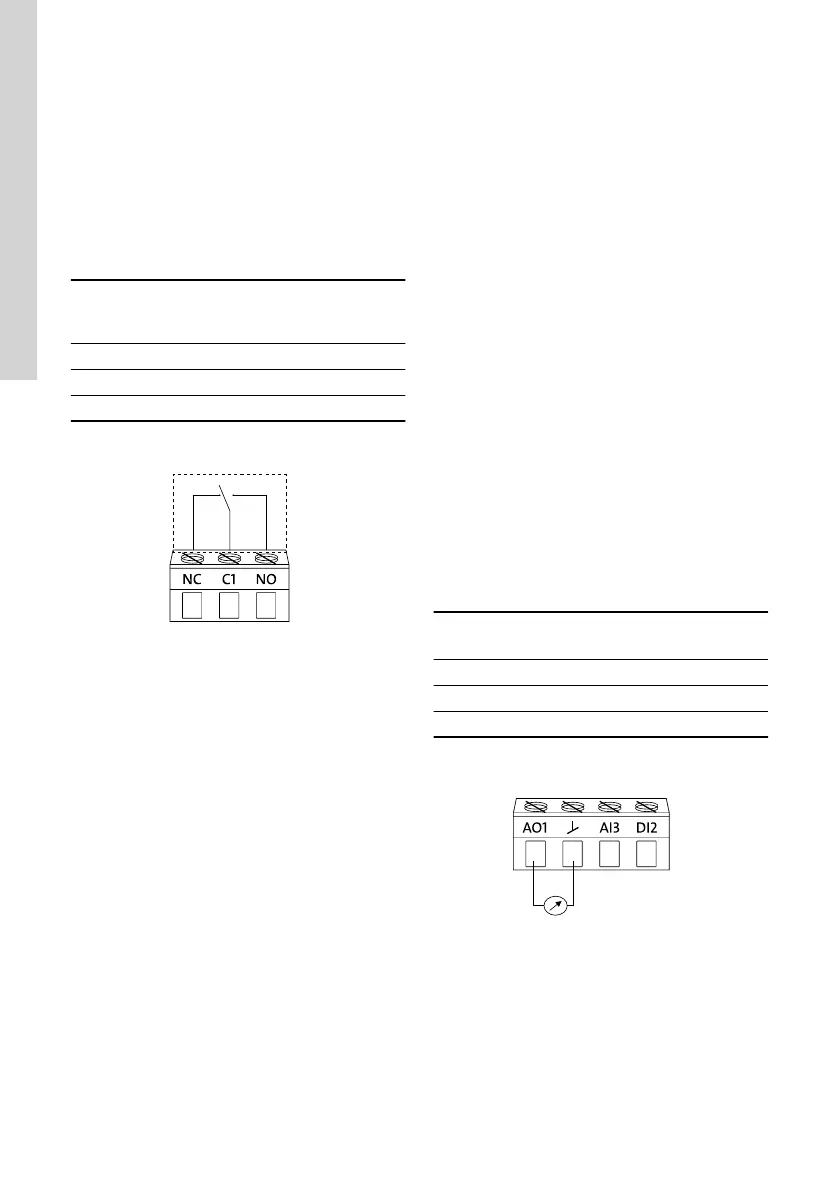

Wiring example:
TM083188
Relay output
Functions
You can configure the signal relays to be activated
when the product changes to one of the following
states:
• Not active
The relay has been deactivated.
• Ready
The motor may be running or is ready to run, and
no alarms are active.
• Alarm
There is an active alarm, and the motor is
stopped.
• Operating (Operation)
Operating equals Running, but the motor is still
in operation when it is stopped, for example, by
the Stop function or Limit exceeded.
• Running (Pump running)
The motor shaft is rotating.
• Warning
There is an active warning.
•
Limit 1 exceeded
When you have set this function and the limit is
exceeded, the signal relay is activated.
• Limit 2 exceeded
When you have set this function and the limit is
exceeded, the signal relay is activated.
• External fan control (Control of external fan)
When you select this function, the relay is
activated if the internal temperature of the motor
electronics reaches a preset limit value. In this
way the relay activates external cooling to add
additional cooling to the motor.
• Digital input 1, state
Follow digital input 1. If digital input 1 is triggered,
the digital output is also triggered.
• Digital input 2, state
Follow digital input 2. If digital input 2 is triggered,
the digital output is also triggered.
• Digital input 3, state
Follow digital input 3. If digital input 3 is triggered,
the digital output is also triggered.
• Digital input 4, state
Follow digital input 4. If digital input 4 is triggered,
the digital output is also triggered.
9.15 Analog output
The inputs and outputs available depend on the
functional module fitted in the motor.
Functional module
Analog output
(Terminals AO, GND)
FM110 -
FM310 •
FM311 •
Wiring example:
TM083185
Analog output, 0/4-20 mA, 0-10 V
The analog output enables external control systems
to read specific operating data.
To set the analog output, make the following settings.
Output signal
Possible signal types:
• 0-10 V
60
English (GB)
To Next Page
Loading...
