Grundfos CRE Series - Operating Panels, HMI 200 and 201

8.3 Operating panels, HMI 200 and 201
1
2
3
4
5

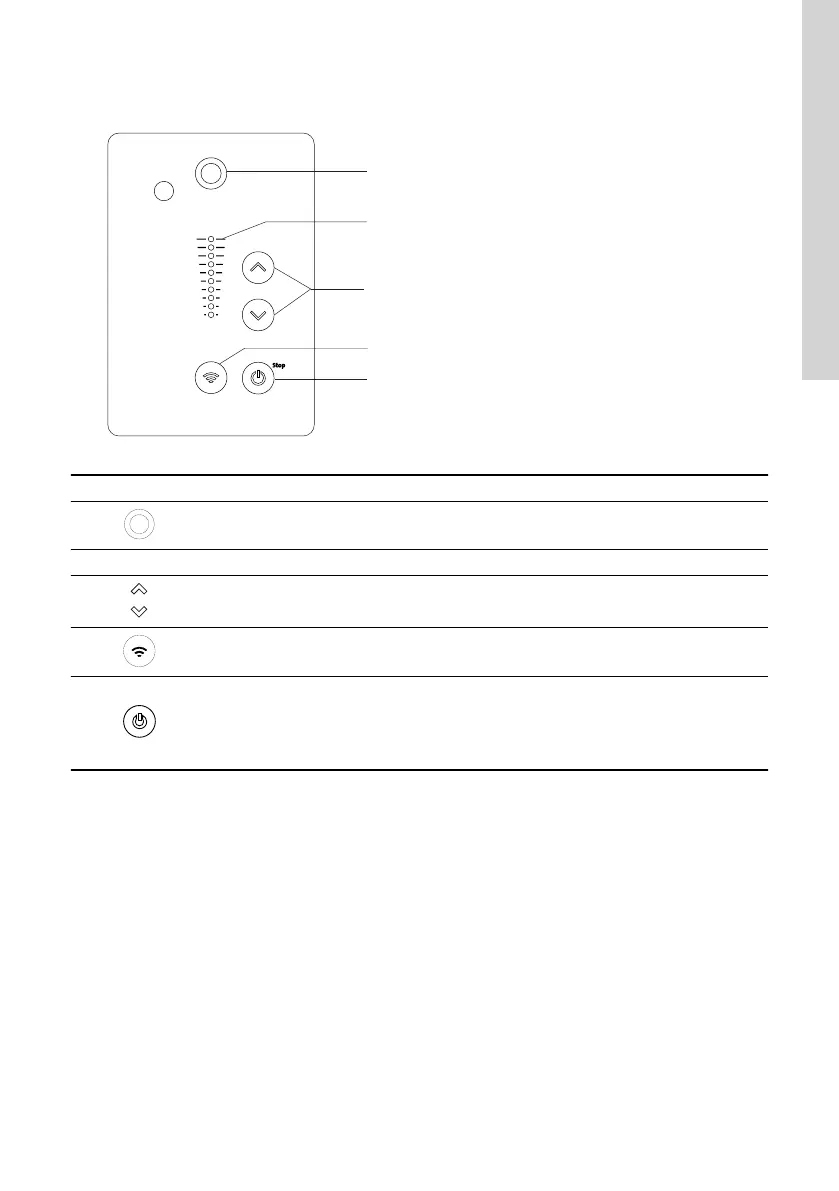

TM082873
Pos. Symbol Description
1 Grundfos Eye: The indicator light shows the operating status of the product.
2 - Light fields for indication of the setpoint.
3 Up/Down: The buttons change the setpoint.
4
Communication:
The button enables communication with Grundfos GO and other products of the same type.
5
Start/Stop: Press the button to make the product ready for operation or to start and stop the
product. Start: If you press the button when the product is stopped, the product starts if no
other functions with higher priority have been enabled. Stop: If you press the button when the
product is running, the product always stops. When you press the button, the stop icon appears
at the bottom of the display.
33
