4. Assembly and Installation

32 PNEG-1156ETL Design III Series Grain Stir-Ator CSA

2. 36' and larger units have an additional center support yoke. Attach the top end of the support yoke to

the center extension tube using a 1-3/4" spacer tube, one 3/8" x 2-1/2" hex head bolt and hex lock nut.

Locate approximately 4" from wire support swing arm toward the outboard end side.

(See Figure 4X.)

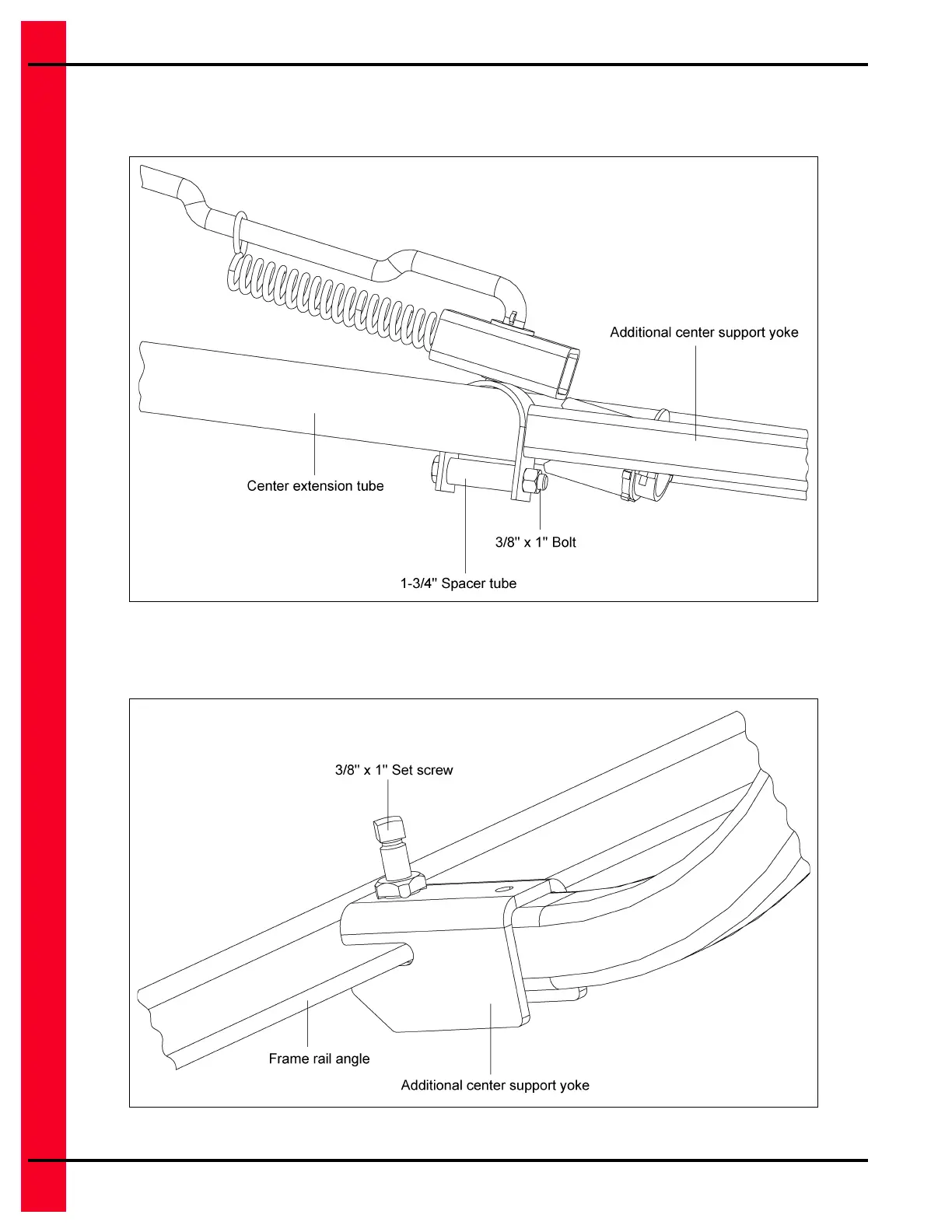

Figure 4X

3. Place bottom of support yoke onto the frame rail angle flange and fasten with 3/8" x 1" set screw.

(See Figure 4Y.)

Figure 4Y
