REMOTE CONTROL
33

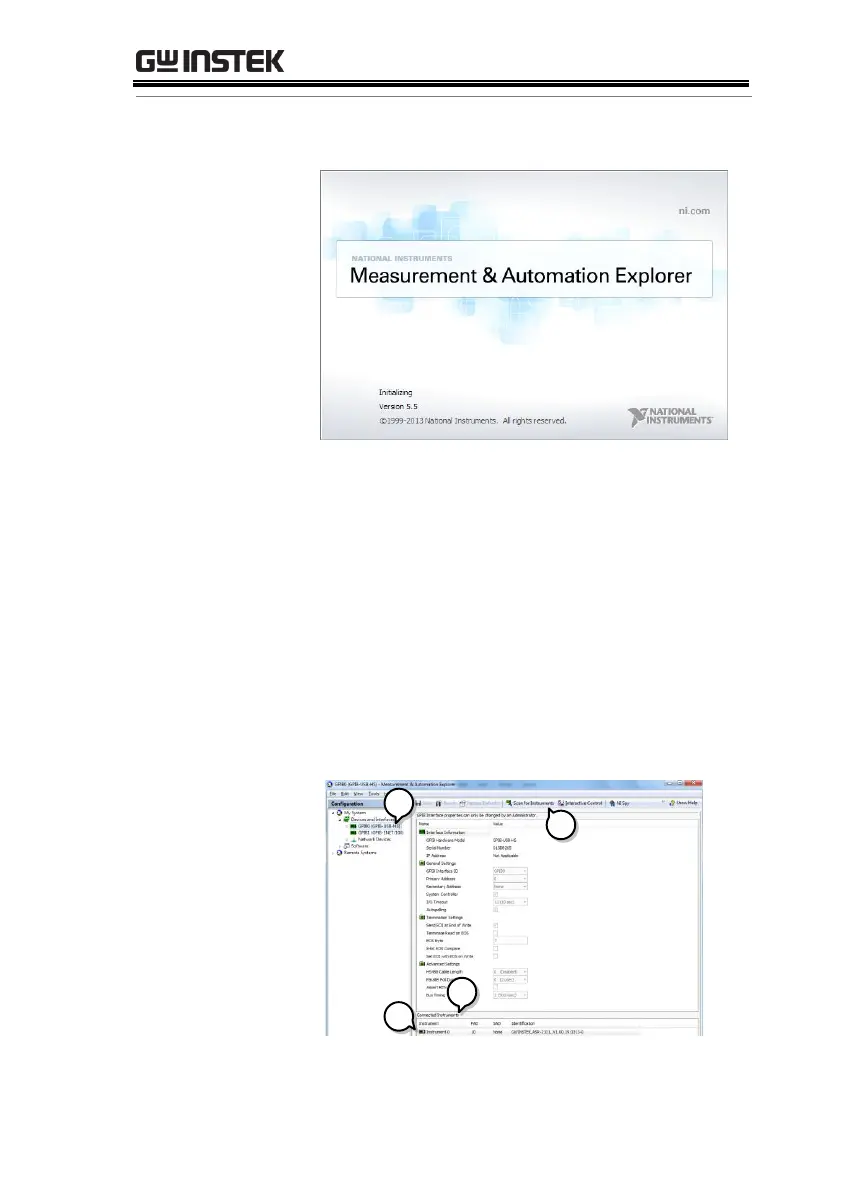

Start>All Programs>NI MAX
2. From the Configuration panel access;
My System>Devices and Interfaces>GPIB0
3. Press the Scan for Instruments button.
4. In the Connected Instruments panel the ASR-
2000 should be detected as Instrument 0 with
the address the same as that configured on the
ASR-2000.
5. Double click the Instrument 0 icon.
3
2
4
3
5
