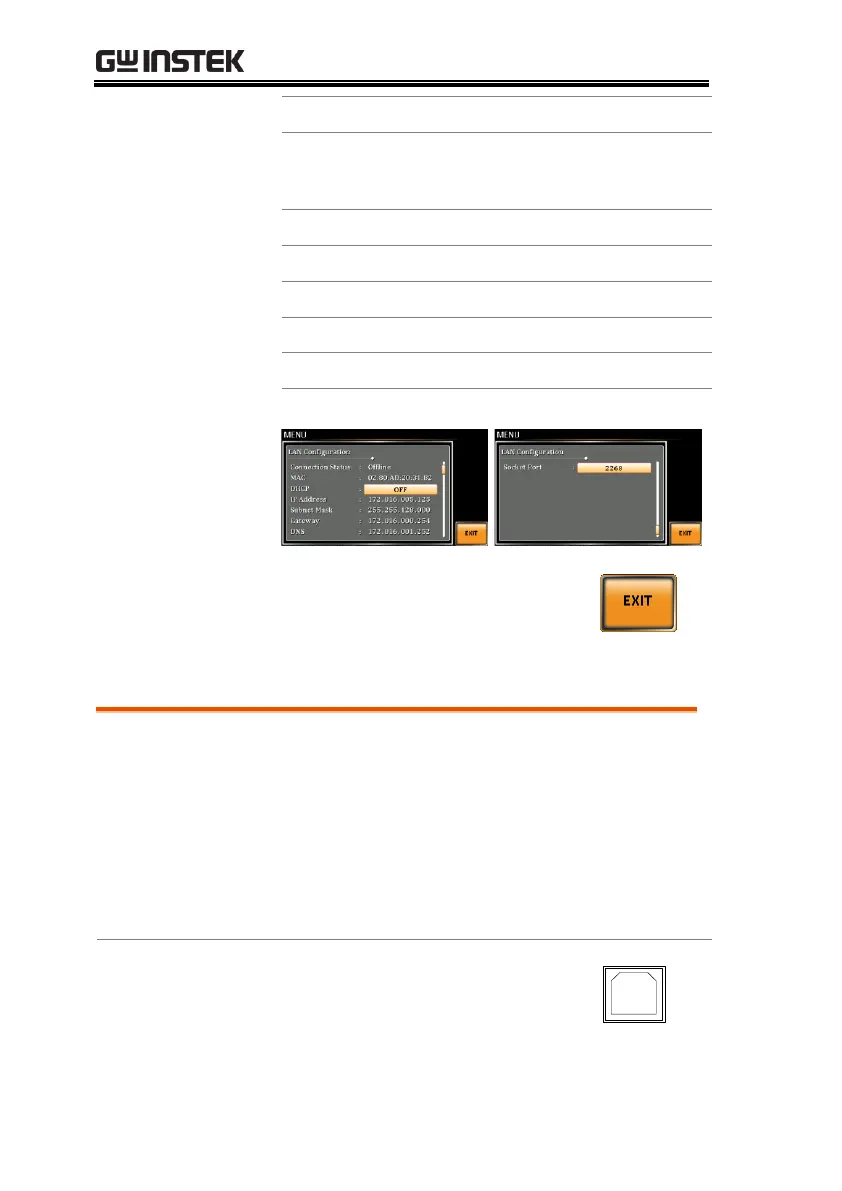

GW Instek ASR-2000 Series - USB Remote Interface

ASR-2000 Programming Manual
22
DHCP
ON, OFF
6. If DHCP was set to OFF, configure the
remaining LAN parameters.
IP Address
Subnet Mask
Gateway
DNS Server
Socket Port
LAN configuration - 1
LAN configuration - 2
Exit
7. Press Exit[F4] to exit from the
LAN settings.
USB Remote Interface
USB
Configuration
PC side
connector
Type A, host
ASR-2000 side
connector
Rear panel Type B, slave
Speed
1.1/2.0 (full speed/auto speed)
USB Class
CDC (communications device
class)
Steps
1. Connect the Type A-Type B USB
cable from the PC to the rear
panel USB B port.
