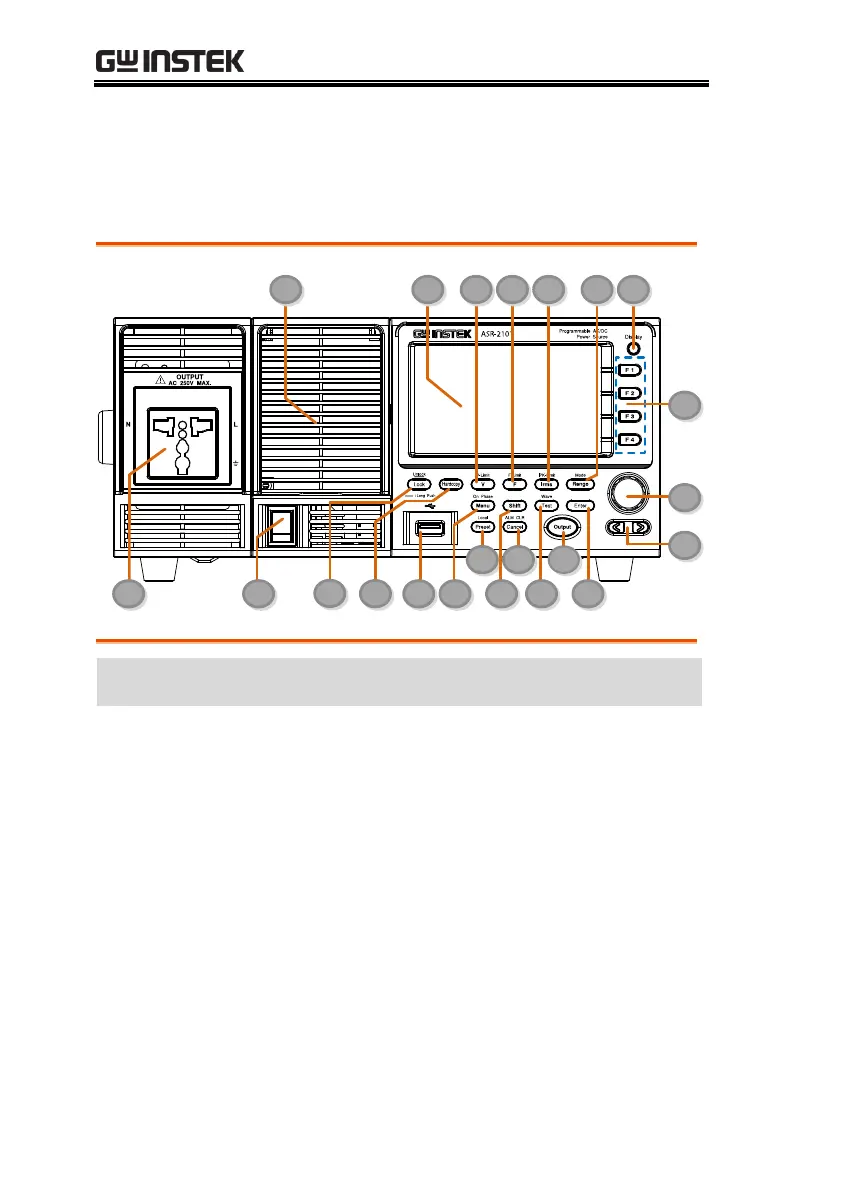

Appearance
Front Panel
M 1
6
2 B
F G
C
H
D E
J
I
5
4A97 8K 3
L
Item Index
Description
1
Power switch button
2
USB interface connector (A Type)
3
LCD screen
4
Display mode select key
5
Function keys (blue zone)
6
Lock/Unlock button
7
V/V-Limit button
8
F/F-Limit button
9
Irms/IPK-Limit button
A
Range key/Output mode key
