ASR-2000 Series User Ma
nual
118

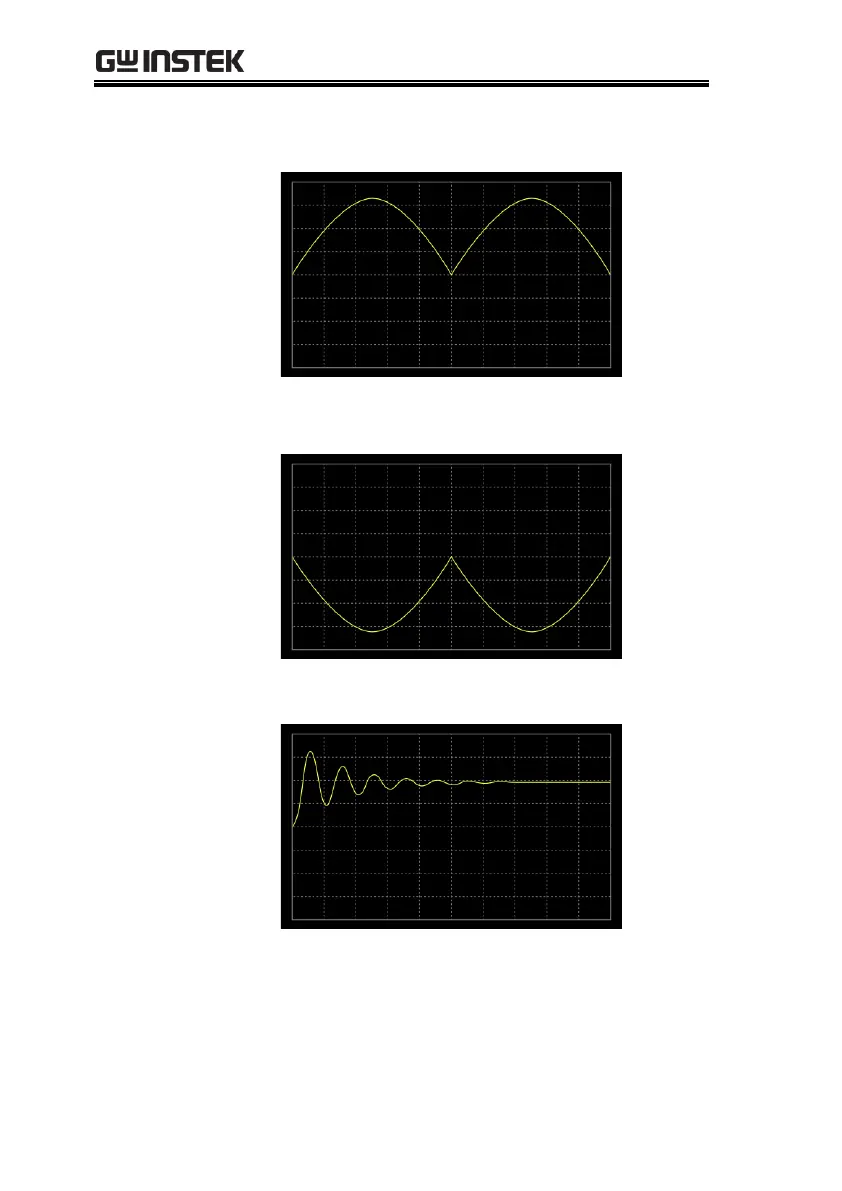

ARB 7
Sine wave, full-
wave
rectification(positive polari
ty)
ARB 8
Sine wave, full-
wave
rectification(negative po
larity)
ARB 9
Second order step resp
onse(damping
coefficient 0.1)
117
119
Table of Contents
Table of Contents
3
Safety Instructions
5
Getting Started
9
ASR-2000 Series Overview
10
Series Lineup
10
Operating Area
10
Main Features
12
Accessories
13
Appearance
15
Front Panel
15
Rear Panel
20
Status Bar Icons
23
Theory of Operation
24
Description of ASR-2000 System
24
Glossary
25
Alarms
27
Considerations
29
Grounding
31
Operation
33
Set up
34
Power up
34
How to Use the Instrument
34
Output Terminals
37
Installing GET-003/GET-004 Box Series (ASR-2000R Only)
41
Using the Rack Mount Kit
44
Reset to Factory Default Settings
46
View Firmware Version and Serial Number
47
Edit Arbitrary Waveform
48
USB Driver Installation
52
Filter Installation
54
Wire Gauge Considerations
56
Menu Tree
58
Main Page
59
Function Keys
60
Ac+DC-Int, Ac+DC-Ext, Ac-Ext, Ac+DC-Add, Ac-Add
60
Ac-Int
60
DC-Int
61
AC+DC-Sync, AC-Sync
61
Menu
62
Basic Operation
63
Select the Output Mode
64
Select the Voltage Range
66
Select the Output Waveform
67
Setting the Frequency Limit
76
Setting the Output Frequency & Signal
79
Setting the Peak Current Limit
81
Setting the Output Current Level
83
Setting the Output on Phase
85
Setting the Output off Phase
87
Switch the Display Modes
89
Using the Measurement Function
92
Switch the Measurement Format
95
Panel Lock
97
Alarm Clear
98
Turning the Output On/Off
99
Advanced Settings
100
Using the Remote Sense Function
100
Local Sense
100
Remote Sense
101
Preset Settings
103
Save Preset Settings to Local Memory
103
Load Preset Settings to Local Memory
104
Manage Preset Settings
105
External Keypad Operation
108
USB Keypad
108
External Control
109
Using External Control I/O
110
Using External Signal Input Function
111
EXT GAIN - AC+DC-EXT and AC-EXT Mode
112
EXT ADD - AC+DC-ADD and AC-ADD Mode
113
EXT Sync - AC+DC-Sync and AC-Sync Mode
113
EXT Voltage - AC-VCA Mode
114
Compiling Arbitrary Waveform Input
115
Manage Arbitrary Waveform Settings
122
Miscellaneous
125
T Ipeak, Hold
126
Ipk Clr
128
Power on
129
Buzzer
131
Remote Sense
132
Slew Rate Mode
134
Output Relay
136
THD Format
137
External Control
139
Unit
140
Test Mode Function
141
Sequence Mode
142
Sequence Mode Overview
142
Sequence Settings
147
Save a Sequence to Local Memory
152
Recall a Sequence from Local Memory
152
Manage Sequence Settings
153
Running a Sequence
157
Simulate Mode
159
Simulate Mode Overview
159
Simulate Settings
162
Save a Simulation to Local Memory
166
Recall a Simulation from Local Memory
166
Manage Simulation Settings
167
Running a Simulation
170
Communication Interface
173
Interface Configuration
173
Configure Ethernet Connection
173
USB Remote Interface
174
USB Remote Control Function Check
175
Remote Interface (Optional 1)
176
RS232 Remote Control Function Check
178
Using Realterm to Establish a Remote Connection
179
GPIB Remote Interface (Optional 1)
182
GPIB Function Check
183
Web Server Remote Control Function Check
186
Socket Server Function Check
187
Faq
192
Appendix
193
Firmware Update
193
Factory Default Settings
195
Error Messages & Messages
200
Specifications
206
Information of Name Order
215
ASR-2000 Dimensions
216
Declaration of Conformity
220
Maintenance & Regular Inspection
221
Index
223
