Running a Simulation
Background
When running a simulation, the display changes to
the simulate run view.

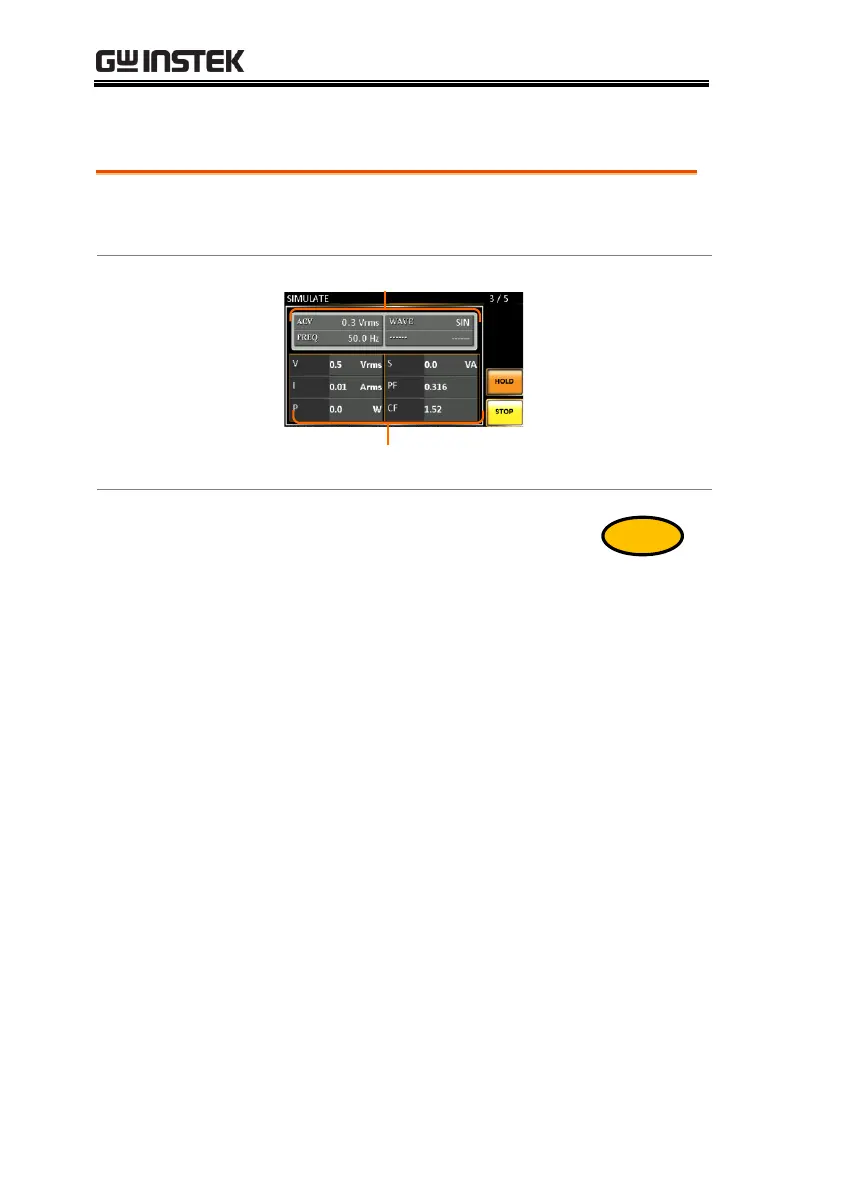

Run Screen
Overview
Settings
Step X of Y
HOLD/CONTI test
STOP/RUN test
Readback
measurements
Steps
1. Press Output key.
Output
2. Press Run[F4] key. The test will start to run.
The settings of current step will be shown at the
top of the screen and the measurement readout
will be shown on the bottom of the screen.
The top-right of the screen will display the
current step number of the simulation.
1/5 = Normal1
2/5 = Trans1
3/5 = Abnormal
4/5 = Trans2
5/5 = Normal2
