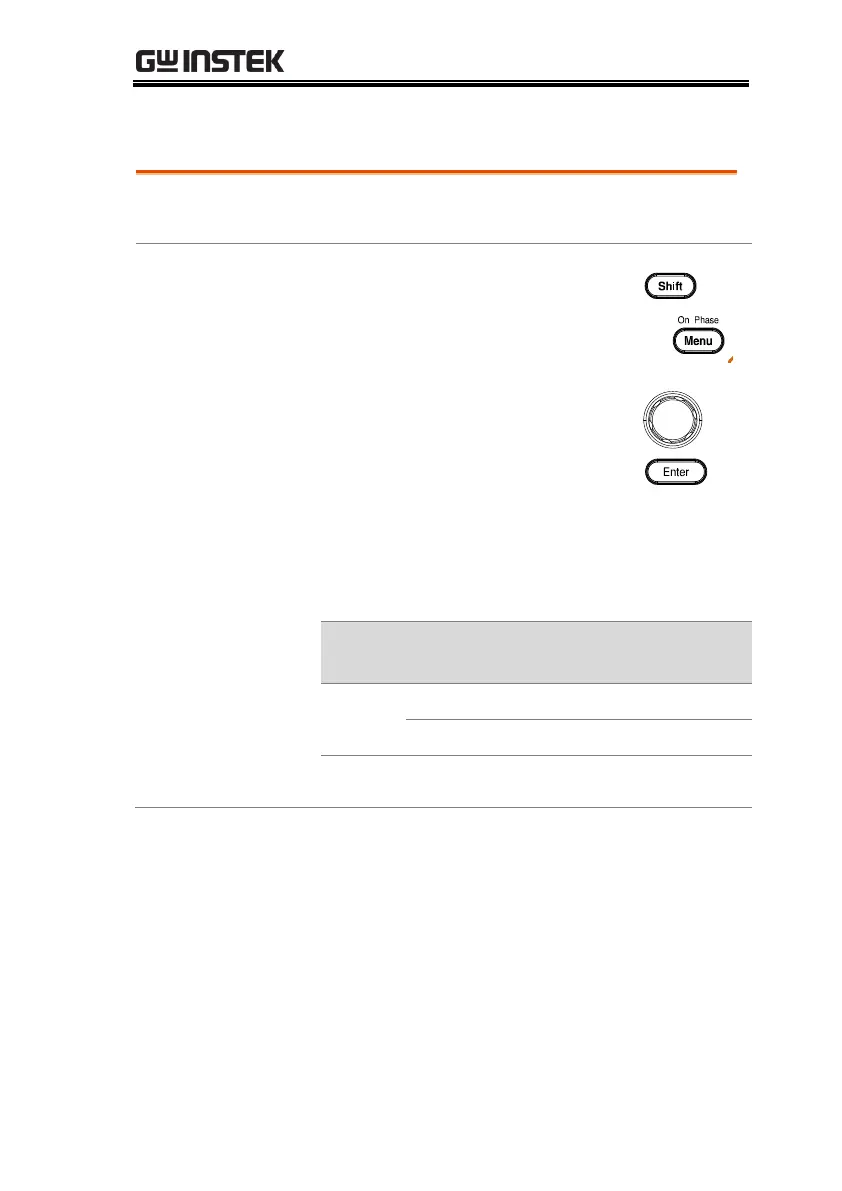

GW Instek ASR-2000 Series User Manual

OPERATION
85
Setting the Output On Phase
Background
The on phase setting sets the starting phase of the
voltage output.
Steps
1. Press Shift + Menu to make the ON
Phs parameter selectable.
+
Also, it is available to use the scroll
wheel followed by the Enter key to
make the ON Phs parameter
selectable as well.
2. Set the ON Phs setting with the scroll wheel or
with the F3 (MAX) and F4 (MIN) soft-keys to set
the On Phase to the maximum and minimum
values, respectively.
AC+DC-INT, AC-INT, AC+DC-ADD,
AC-ADD, AC+DC-Sync, AC-Sync, AC-VCA
ON Phs
Range
0.0° ~ 359.9°
Soft-keys
FIXED/FREE, MAX, MIN
3. Press Enter to confirm the On Phase setting.
