GW Instek ASR-2000 Series - Rear Panel

ASR-2000 Series User Manual
20

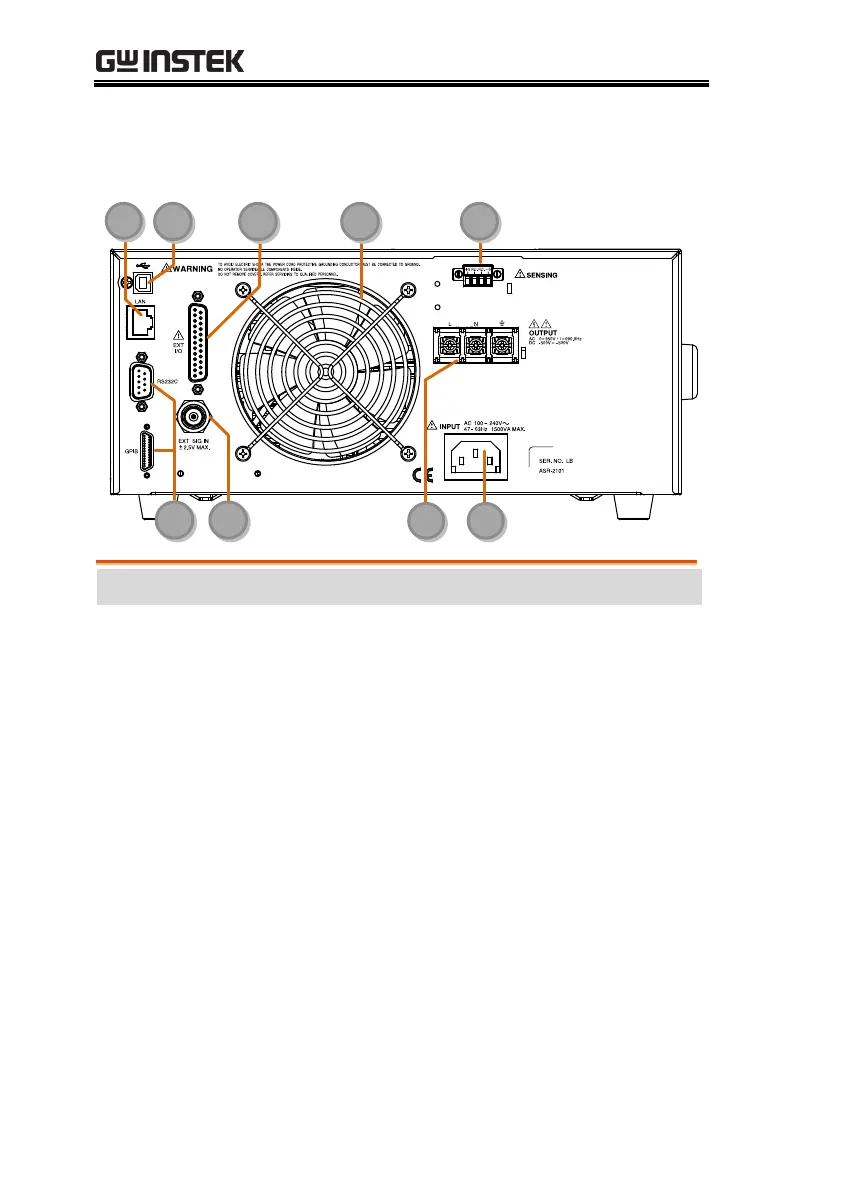

Rear Panel
3
47
8
9
5
2 1
6
Item Index
Description
1
Line input
2
Output terminal
3
Remote sensing input terminal
4
Exhaust fan
5
External I/O connector
6
External signal input/
External synchronized signal input
7
USB interface connector (B Type)
8
Ethernet (LAN) connector
9
Optional 1 interfaces (RS232C & GPIB connectors)
