GW Instek ASR-2000 Series User Manual

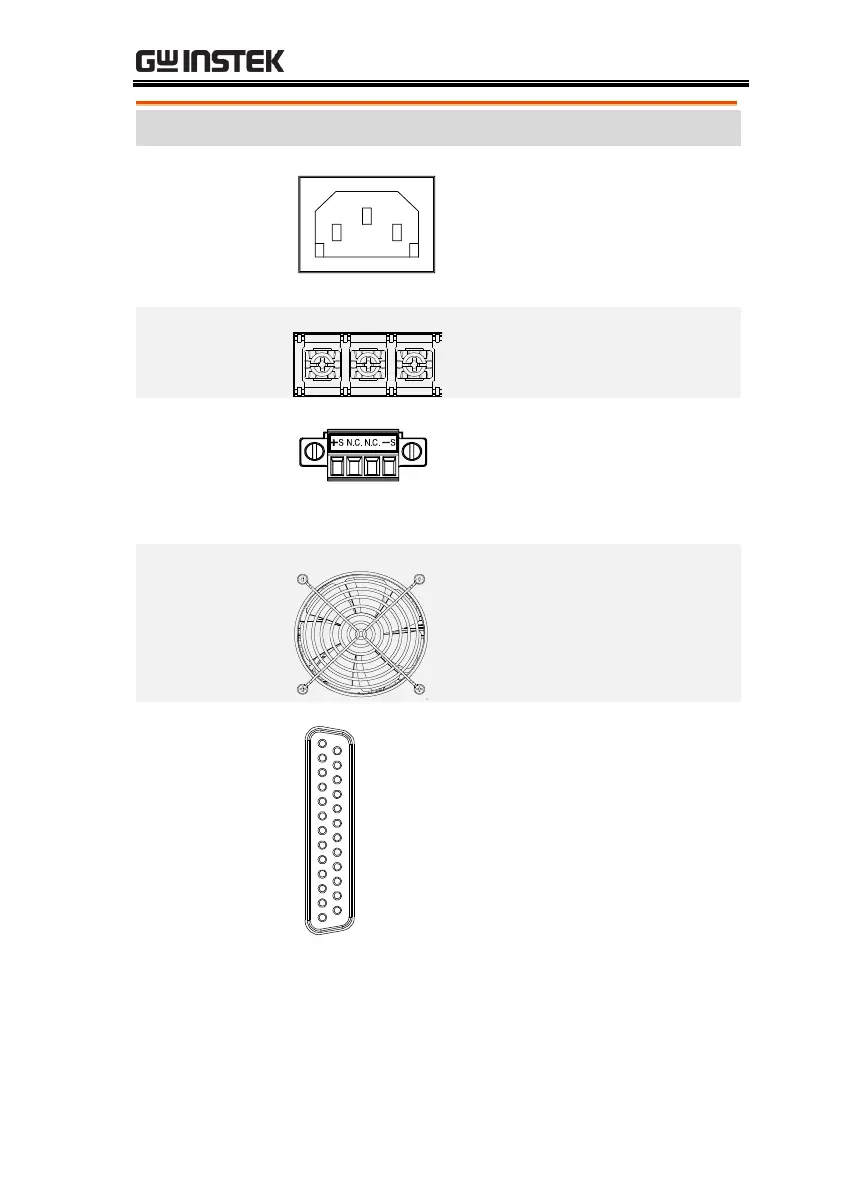

GETTING STARTED
21
Item
Description
Line Input
AC inlet
Output Terminal
Output voltage terminal (M3
screw type, 10 ~ 18 AWG)
Remote Sensing
Input Terminal
Compensation of load wire
voltage drop. Only +S and –S are
available for compensation. N.C.
terminals are N/A. Refer to page
101 for details.
Exhaust Fan
The exhaust fan is used to expel
the heat from the unit. Please
ensure there is at least 20 cm
distance between any object and
the fan.
External Control
I/O Connector
Used to control ASR-2000
externally by using the logic signal
and monitor Sequence function
status
