GW Instek ASR-2000 Series User Manual

ASR-2000 Series User Manual
136
Output Relay
The internally built-in output relay function has close relation with
the power output function by default. That is to say, when output is
on, the output relay will be activated if output relay is enabled; by
contrast, the output relay will be deactivated when output is off.
On the other hand, output relay function disabled means output
terminal is under the condition of high impedance and output relay
retains the state of conducting for good, which is suitable for the
condition of turning output on/off rapidly.
Steps
1. Press the Menu key. The Menu
setting will appear on the display.
2. Use the scroll wheel to go to item 2, MISC
Configuration and press Enter.
3. Go to the Output Relay setting using the scroll
wheel and press Enter. Enable or disable output
relay mode and press Enter again to confirm.
Output Relay
Enable, Disable
Exit
4. Press Exit[F4] to exit from the
MISC Configuration settings.

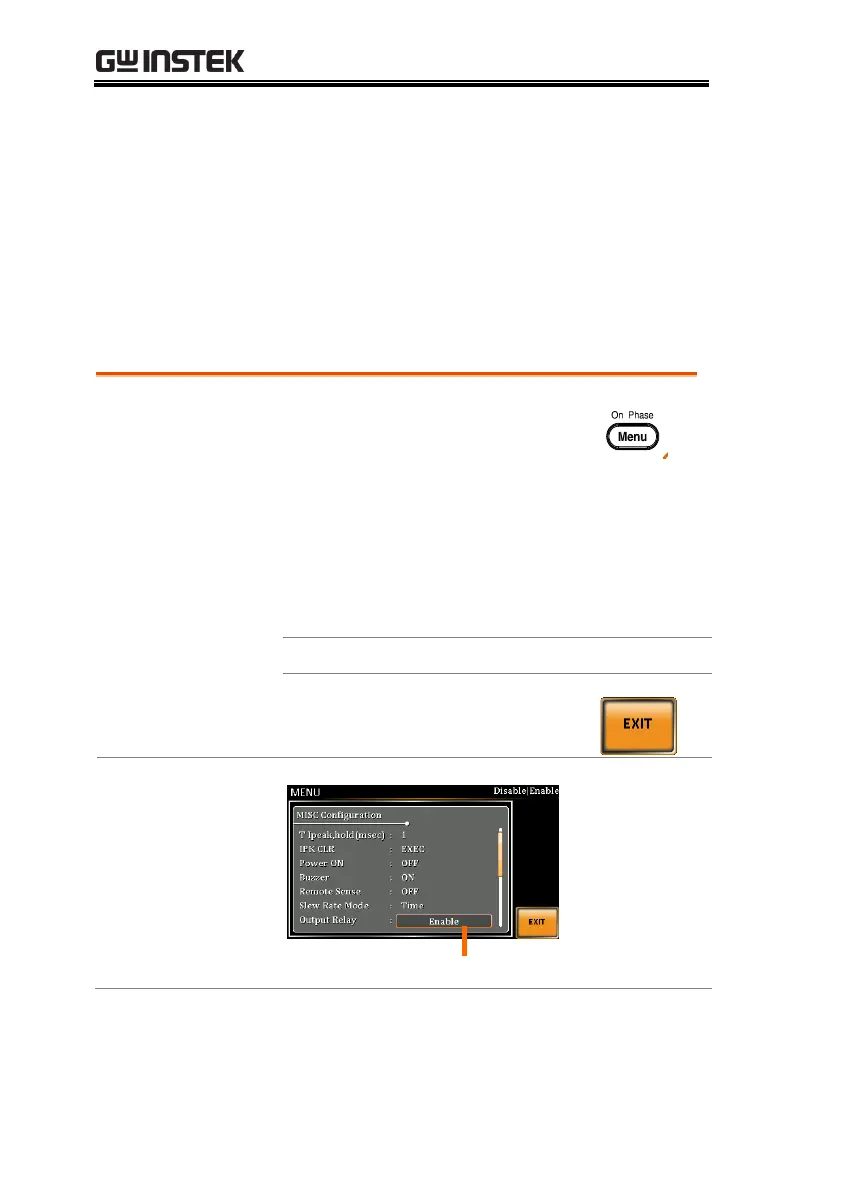

Example
Output Relay setting
