GW Instek ASR-2000 Series User Manual

EXTERNAL CONTROL
111
20
Output
Reserved
21
Output
Reserved
22
Output
Reserved
23
Output
Reserved
24
Output
Reserved
25
Output
Reserved
Note
The limiter operation is recognized as On when the
following conditions exist.
 Output peak current limiter (positive) is operated.
 Output peak current limiter (negative) is operated.
 Output average current limiter is operated.
 Output power limiter is operated.
Using External Signal Input Function
Overview
The External Signal Input port is particularly used
for several output modes including AC+DC-EXT,
AC-EXT, AC+DC-ADD, AC-ADD, AC+DC-Sync
and AC-Sync, AC-Sync and AC-VCA.
Connect to the External Signal Input port on the
rear panel via a coaxial cable with a BNC connector
when using an external input signal as the signal
source with external synchronization.

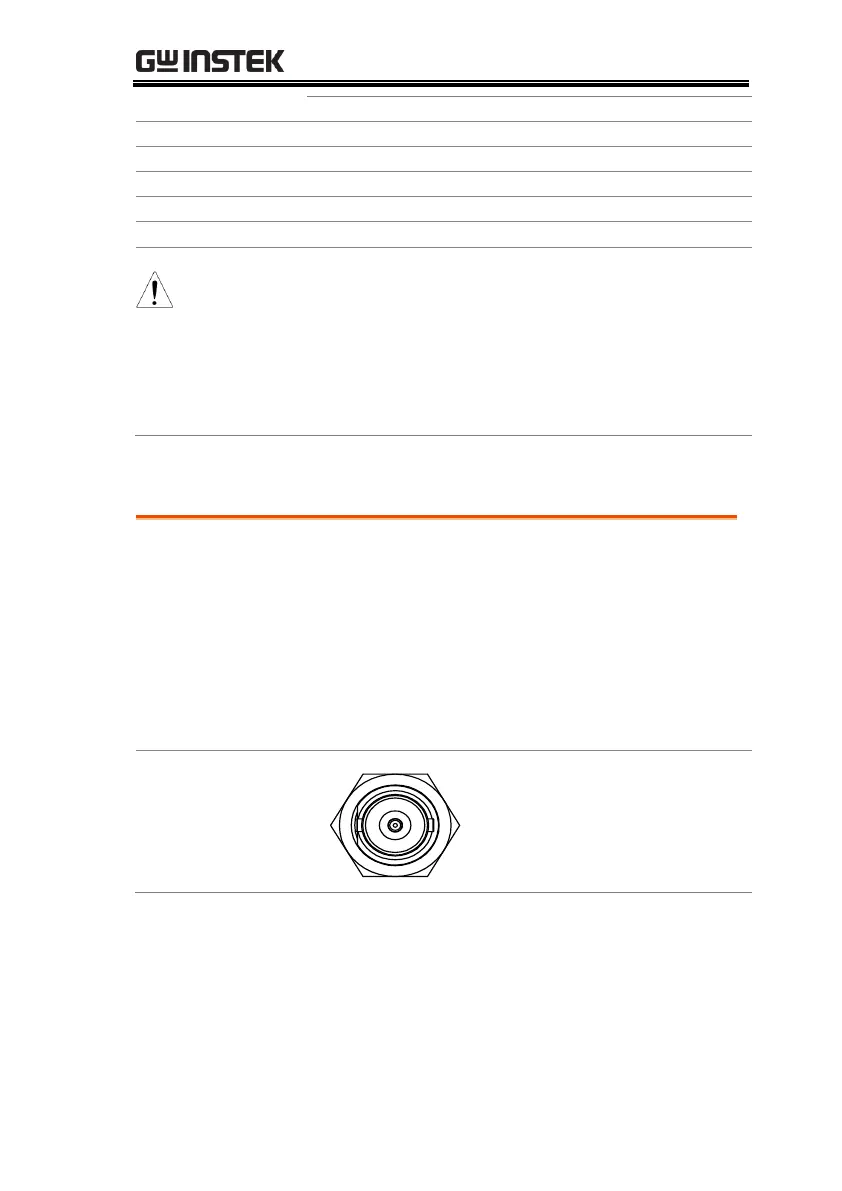

External Signal
Input Connector
