GW Instek ASR-2000 Series User Manual

ASR-2000 Series User Manual
18

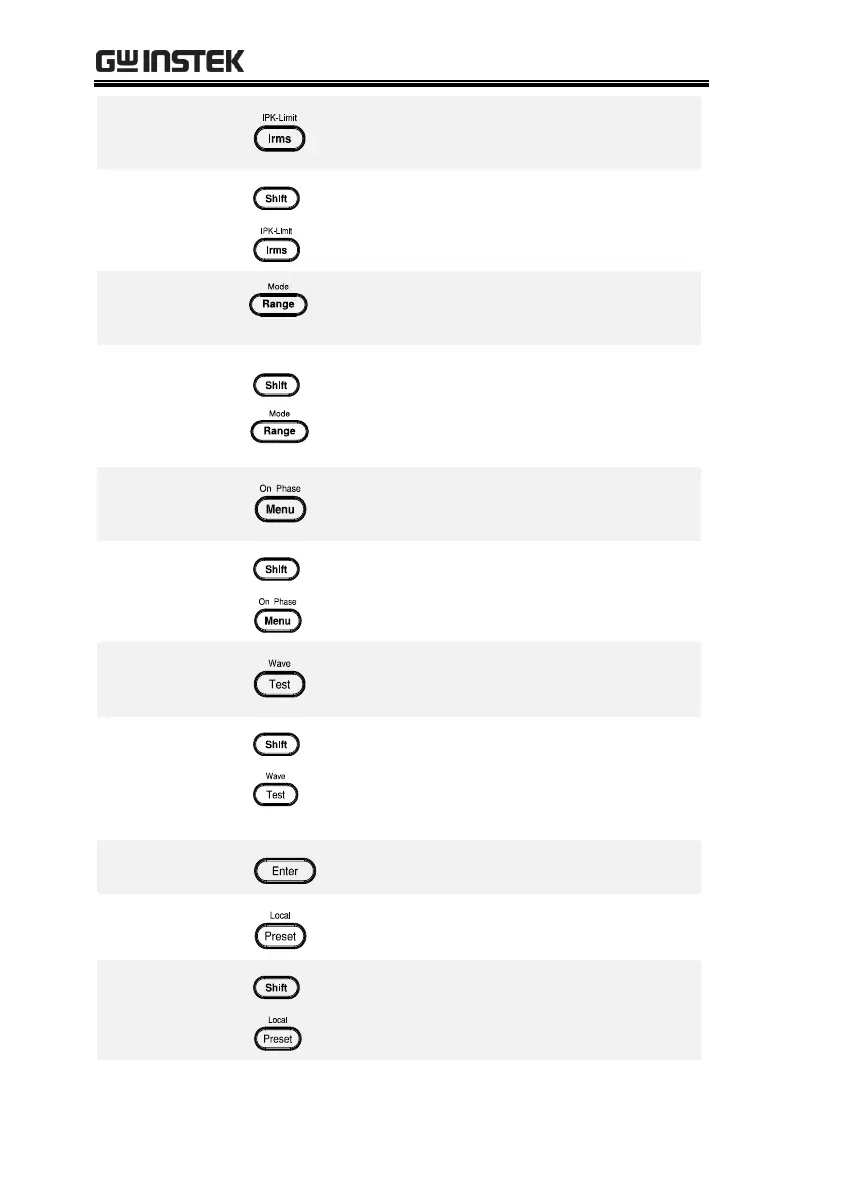

Irms
Used for setting the maximum output
current
IPK-Limit
+
Used to set the peak output current
limit value
Range Key
Switches between the 100V, 200V and
AUTO ranges
Output Mode
+
Selects between the AC+DC-INT, AC-
INT, DC-INT, AC+DC-EXT, AC-EXT,
AC+DC-ADD, AC-ADD, AC+DC-Sync
and AC-Sync modes
Menu Key
Enters the Main menu or goes back to
one of the display modes.
On Phase
+
Sets the on phase for the output
voltage
Test Key
Puts the instrument into the Sequence
and Simulation control mode.
Output
Waveform
+
Selects between the Sine, Square,
Triangle and ARB 1~16 waveforms
(not available for DC-INT, AC+DC-EXT
and AC-EXT)
Enter Key
Confirms selections and settings
Preset Key
Puts the instrument into Preset mode
Local Mode
+
Switches operation back to local mode
from remote mode
