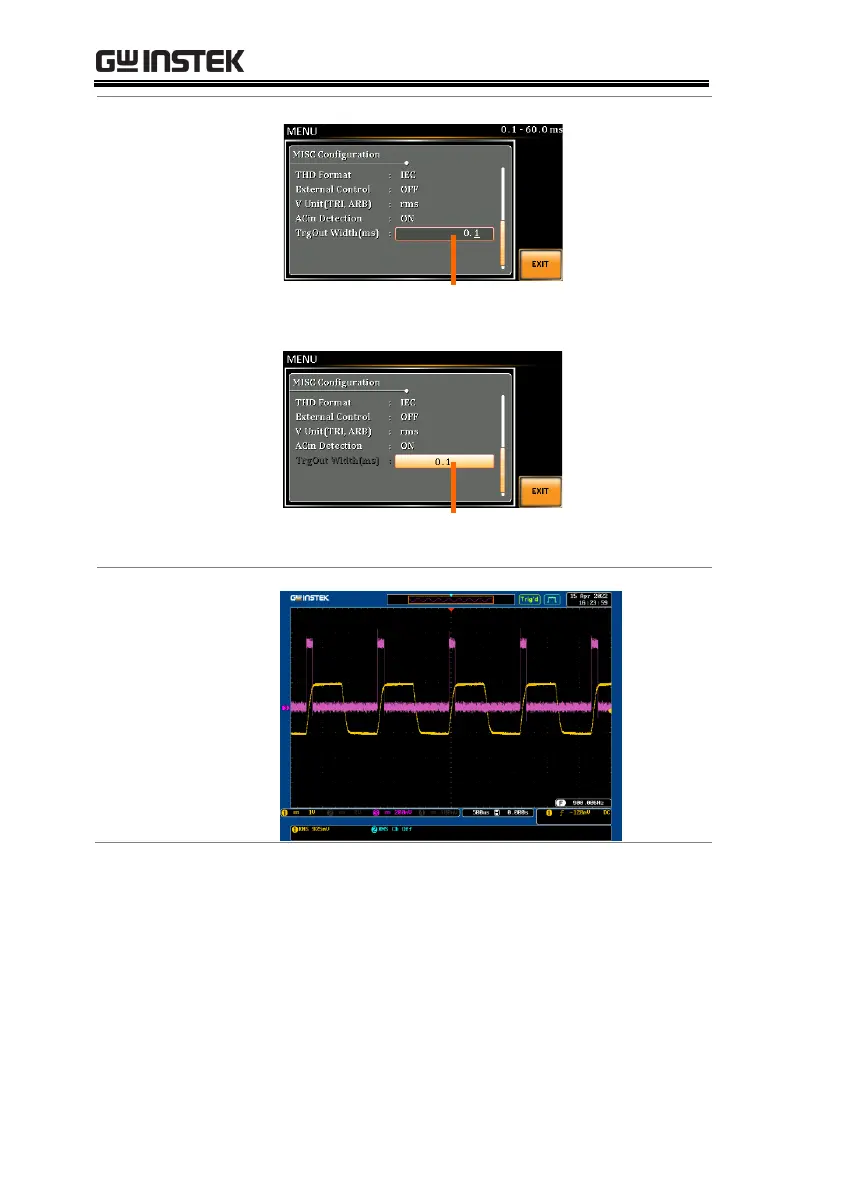

Example
Trigger Out
Width setting
It is grey-out under unavailable
modes, but value can be set stilll.
The actual
waveform –
AC-INT Mode,
Frequency 900
Hz, TrgOut Width
0.1 ms
