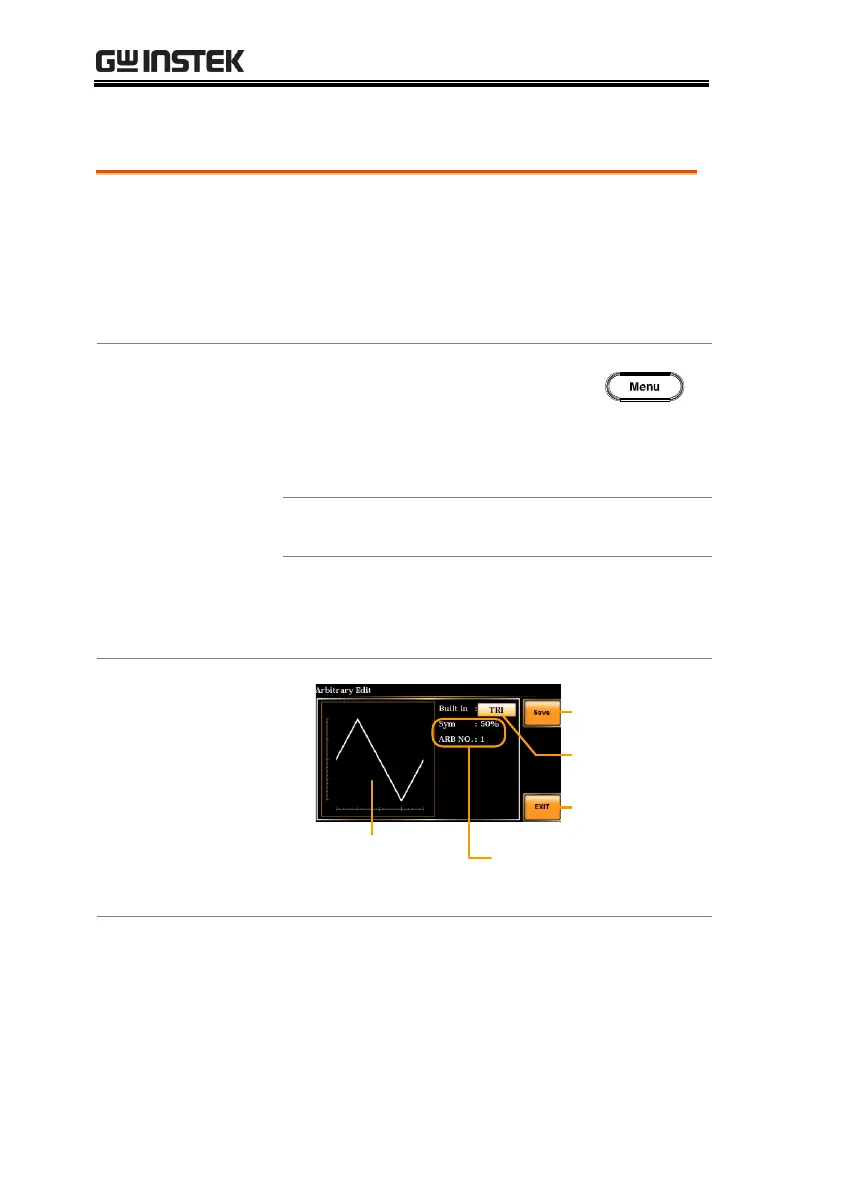

Edit Arbitrary Waveform
Background
The arbitrary waveform editing function is to
select built-in arbitrary waveforms. There are a
number of built-in waveform shapes to choose
from, each of which can be customized with
varied attributes. Finally, choose an ARB NO.
(1~16) to output the selected built-in waveform.
Steps
1. Press the Menu key. The Menu
setting will appear on the display.
2. Use the scroll wheel to go to item 7, Arbitrary Edit
and press Enter to enter the Arbitrary Edit page.
Built-in
Waveform
TRI, STAIR, CLIP, CF-1, CF-2,
SURGE, DST01-22
3. Use the scroll wheel and Enter key to select
waveform along with pertaining attributes and
press Save to confirm settings.
Setting Screen
Overview
Built-in
waveform type
Attributes for the
selected waveform
Visual representation
of the waveform shape
and its attributes
F4 Exit
F1 Save
ARB Waveform
Overview
The following describes each of the built-in
waveforms.
