GW Instek ASR-3000 Series - Appearance; Front Panel

GETTING STARTED
17
Appearance

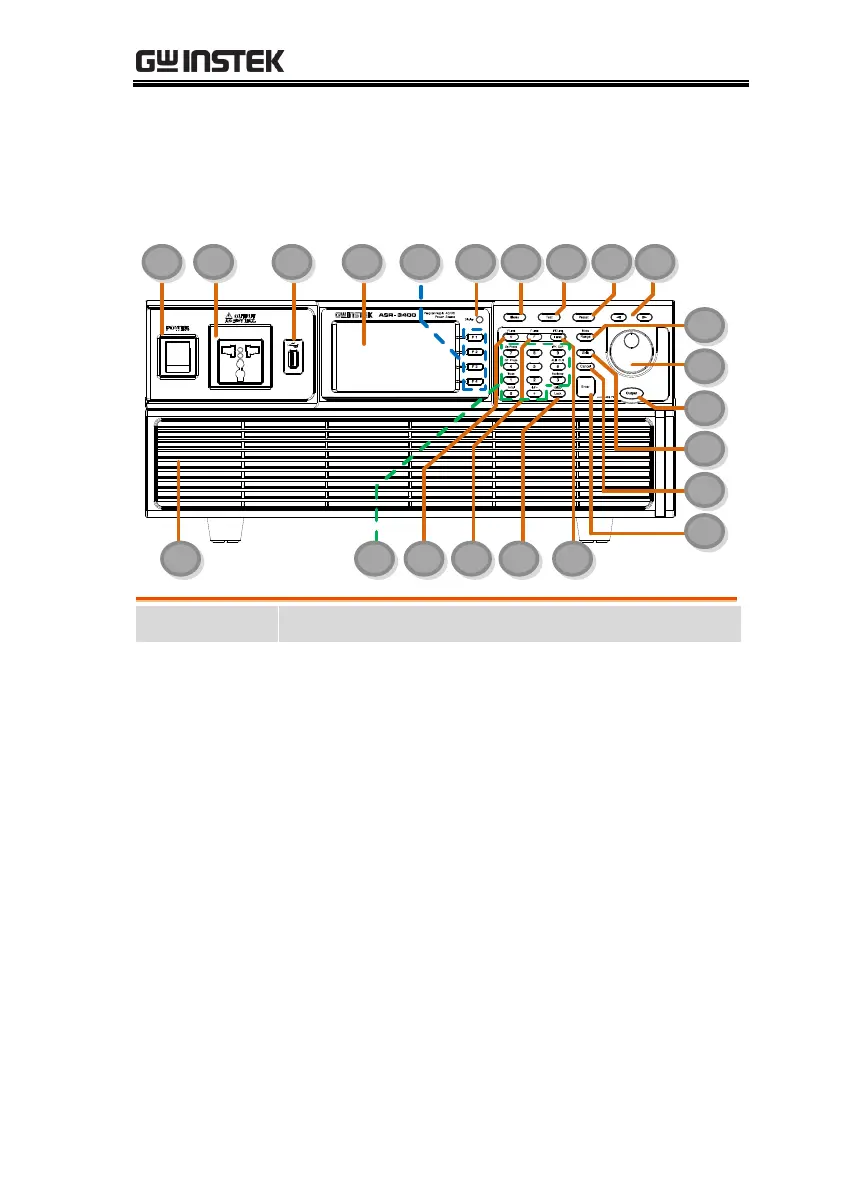

Front Panel
1 2 3 4 5 6 7 8 9 A
B
C
D
E
F
G
HIJKM L
Item Index
Description
1
Power switch button
2
Output Socket
3
USB interface connector (A Type)
4
LCD screen
5
Function keys (blue zone)
6
Display mode select key
7
Menu key
8
Test key
9
Preset key
A
Arrow keys
B
Range key/Output mode key
C
Scroll wheel
