Using the Rack Mount Kit
Background
The ASR-3000 has the following optional Rack
Mount kits, respectively.
Unit Model
Rack Mount kit part number
ASR-3200
ASR-3300
ASR-3400
ASR-3400HF
GRA-442-E
GRA-442-J
The GRA-442-E is designed to fit into an EIA
rack of 4U-height, while the GRA-442-J is
designed to fit into a JIS rack of 4U-height.
Please see your distributor for further rack
mount details.

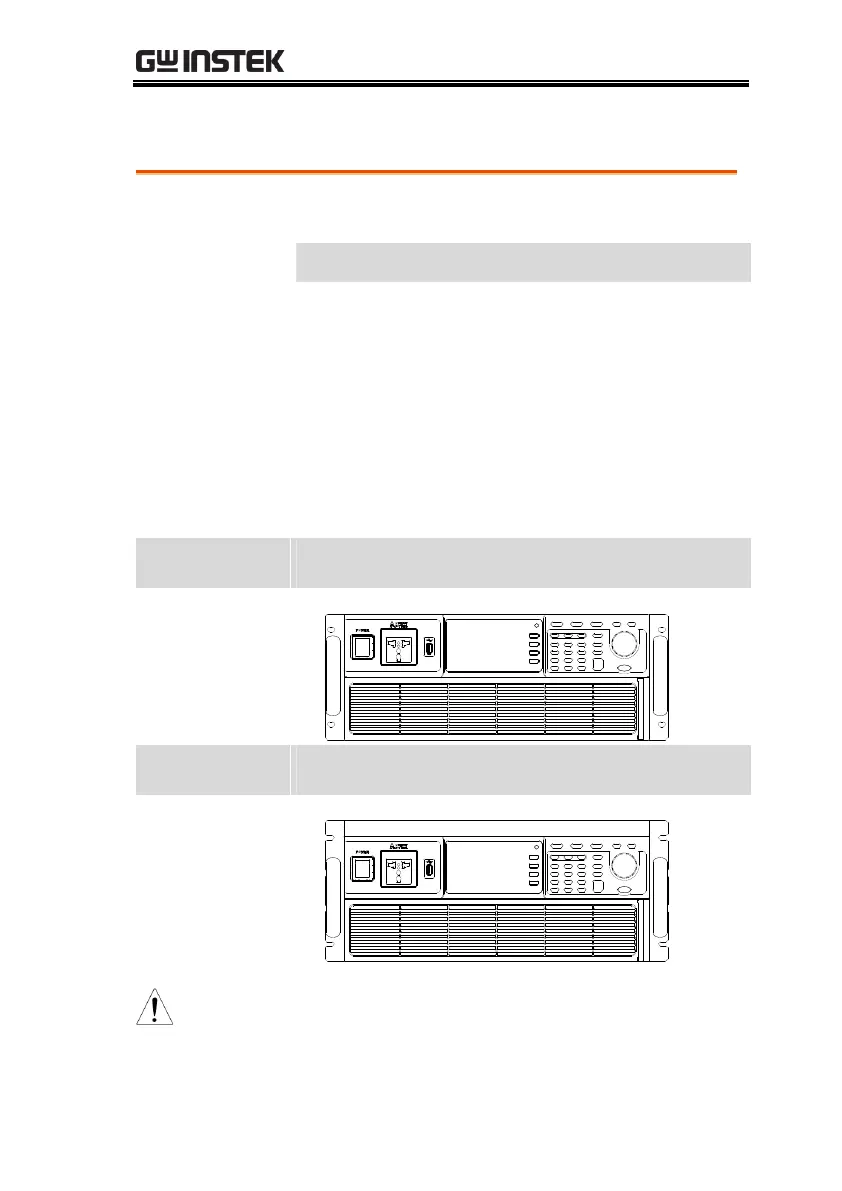

GRA-442-E Series
GRA-439-E Rack
Mount with ASR-
3000 Diagram
GRA-442-J Series
GRA-439-J Rack
Mount with ASR-
3000 Diagram
CAUTION
Ensure adequate ventilation is provided when using
the rack mount. Ensure that a gap is given for air
intakes. Failure to do so may cause the instrument to
overheat.
