GW Instek ASR-3000 Series - Unit

ASR-3000 Series User Manual
144
V Unit
User can freely select voltage set value unit as either RMS or PEAK
only when output waveform is selected TRI or ARB.
Steps
1. Press the Menu key. The Menu
setting will appear on the display.
2. Use the scroll wheel to go to item 2, MISC
Configuration and press Enter.
3. Go to the V Unit setting using the scroll wheel
and press Enter. Choose the setting voltage unit
and press Enter again to confirm selection.
rms
Set the setting voltage unit to rms
for all of output waveform.
p-p
Set the setting voltage unit to peak
for TRI and ARB output waveform
only.

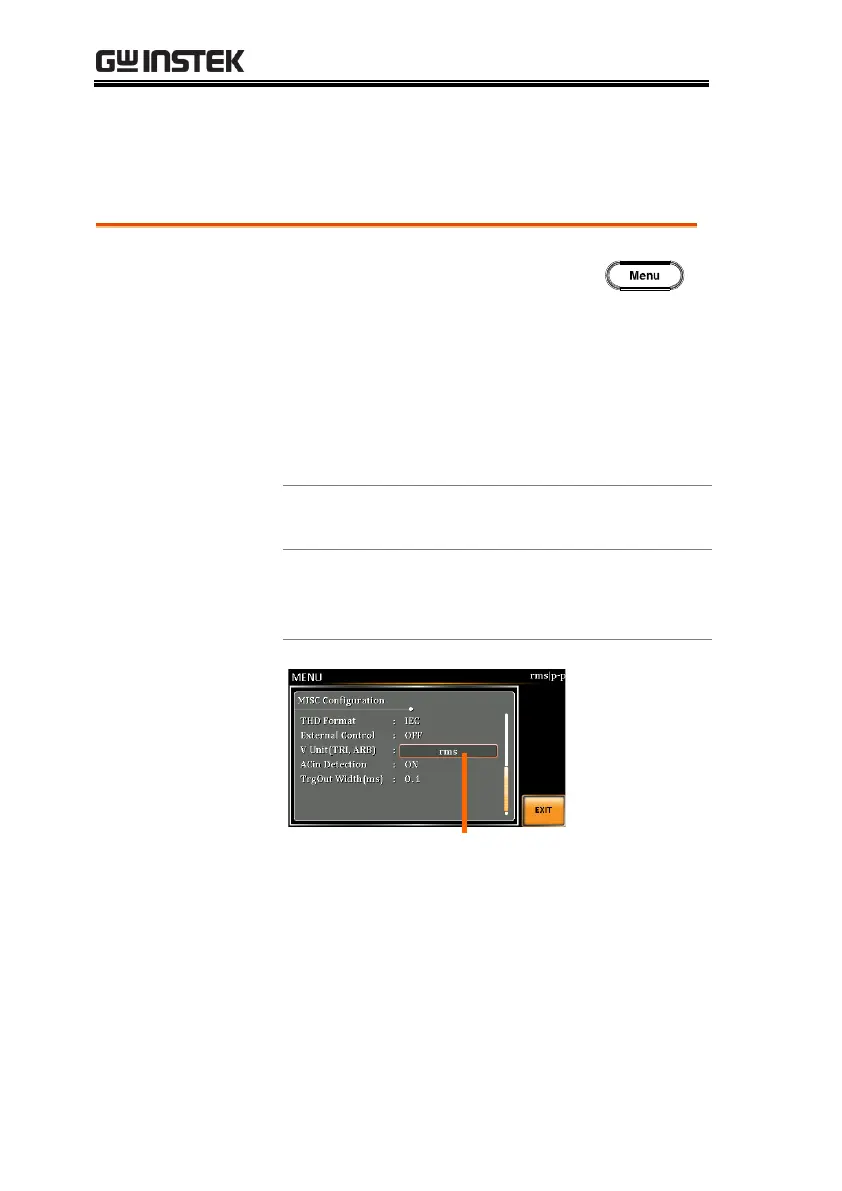

Example
V unit setting
