GW Instek ASR-3000 Series User Manual

TEST MODE FUNCTION
169
Simulate Mode
Simulate Mode Overview
Background
The Simulate function, which works in AC+DC-
INT mode only, is used to test power supply
fluctuation. This function is able to simulate
common abnormalities in mains power such as
fluctuations in voltage, phase and frequency.
These simulations can be run as one-off
anomalies or cyclic anomalies.

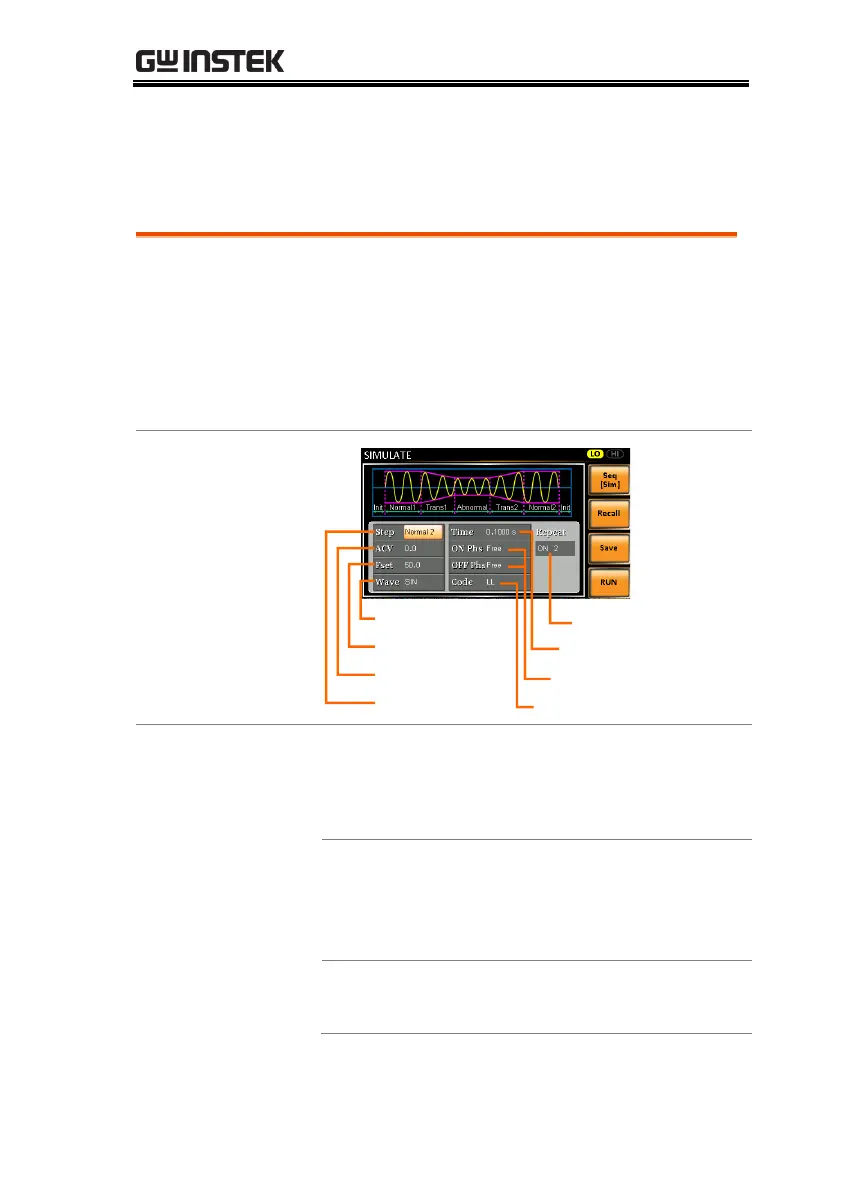

Setting Screen
Overview
Number of Repeat
Sync Code
Step Wave
Step Frequency
Step Voltage
Step
ON/OFF Phase
Step Time
Test Mode
V RANGE
Recall Test
Save Test
Run Test
Step Overview
The Simulate function is comprised of 6 steps.
Each step is run sequentially in the following
order: Initial, Normal1, Trans1, Abnormal,
Trans2, Normal2 and Initial.
Initial
The Initial step is used as the initial
and final settings of the waveform
simulation. This is the standby step
before the test starts and the standby
step after the test ends.
Normal1
This step configures the normal output
conditions that precede the abnormal
conditions.
