GW Instek ASR-3000 Series User Manual

GETTING STARTED
21

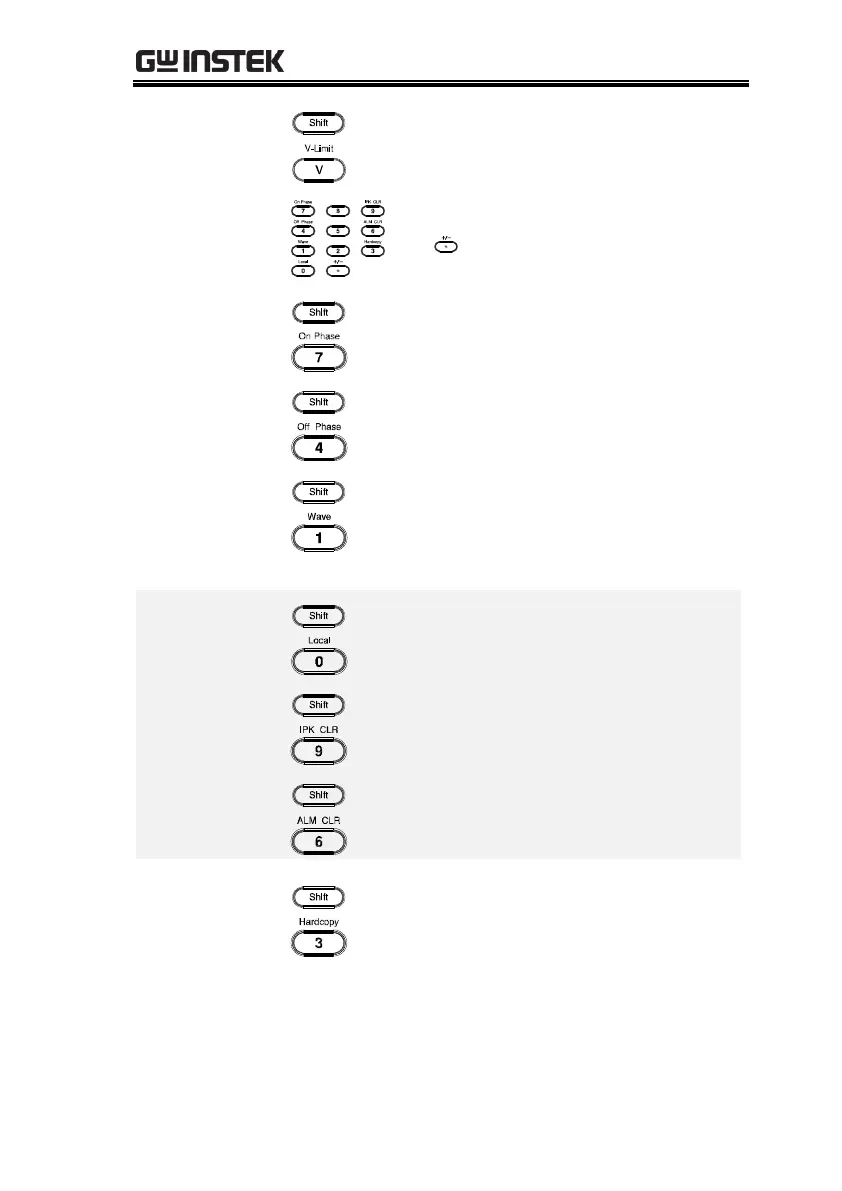

V-Limit
+
Used for setting the output voltage limit
value.
Keypad
Used to input power of a value directly.
The key is used to input decimal /
plus or minus.
On Phase
+
Sets the on phase for the output voltage.
Off Phase
+
Sets the off phase for the output voltage.
Output
Waveform
+
Selects between the Sine, Square,
Triangle and ARB 1~16 waveforms
(not available for DC-INT, AC+DC-EXT
and AC-EXT).
Local Mode
+
Switches operation back to local mode
from remote mode.
IPK CLR
+
Used to clear peak output current value.
ALM CLR
+
Clears alarms.
Hardcopy Key
+
Used to take a screenshot. Make sure an
USB flash disk in well inserted before
the action.
Air Inlet
Air inlet for cooling the inside of the
ASR-3000 series.
