GW Instek ASR-3000 Series User Manual

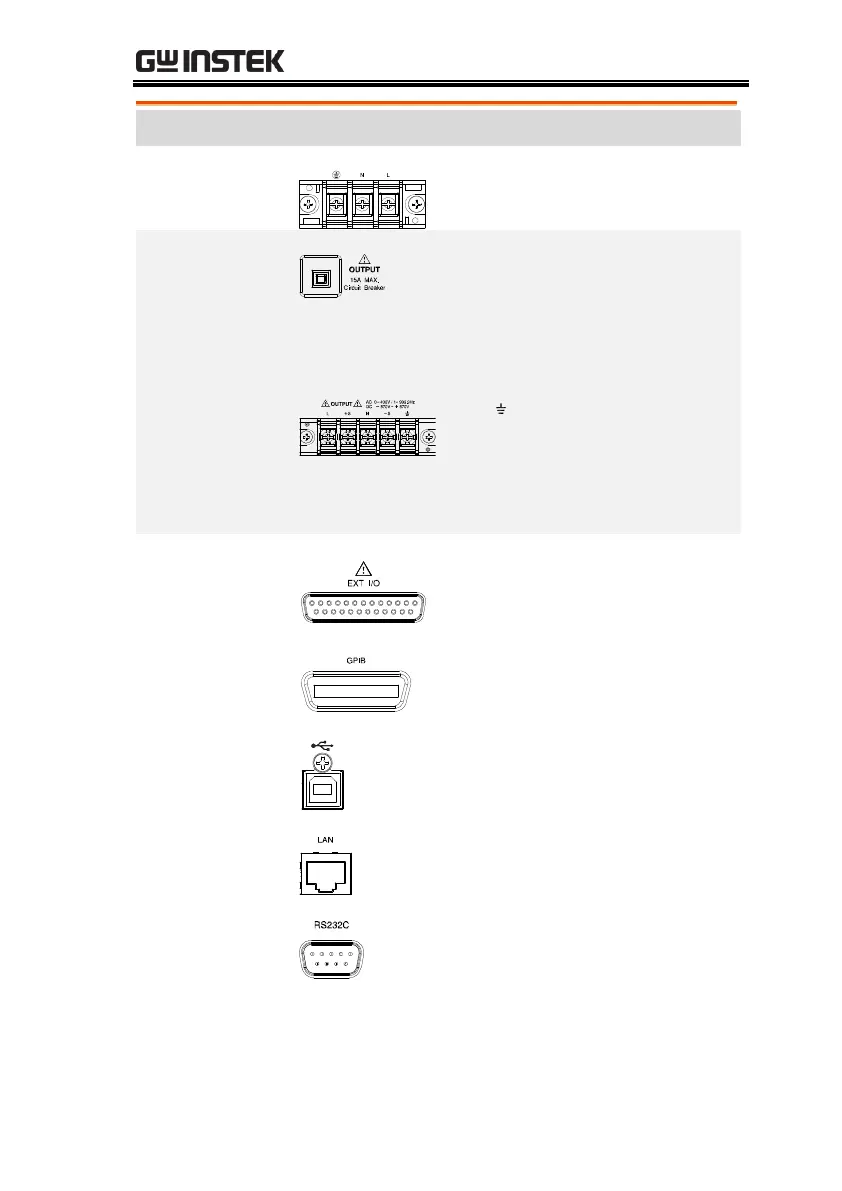

GETTING STARTED
23
Item
Description
AC Power Input
terminal
AC inlet
(M4 screw type, 8 ~ 22 AWG)
Circuit Breaker
When front panel output socket
output current reaches 15A, the
circuit breaker will be activated
automatically to cut off output. Press
the button to reset the function.
Output Terminal
with Remote
Sensing Input
terminal
L, N, : Output voltage terminal
(M4 screw type, 8 ~ 22 AWG)
+S, -S: Remote sensing input
terminal is for compensation of
load wire voltage drop.
External Control
I/O Connector
Used to control ASR-3000 externally
by using the logic signal and
monitor Sequence function status.
GPIB Connector
The GPIB connector for
controlling the ASR-3000 remotely.
USB
USB port for controlling the ASR-
3000 remotely.
Ethernet Port
The Ethernet port is used for
remote control.
RS232C
Connector
The RS232C connector for
controlling the ASR-3000 remotely.
