GW Instek ASR-3000 Series User Manual

ASR-3000 Series User Manual
42

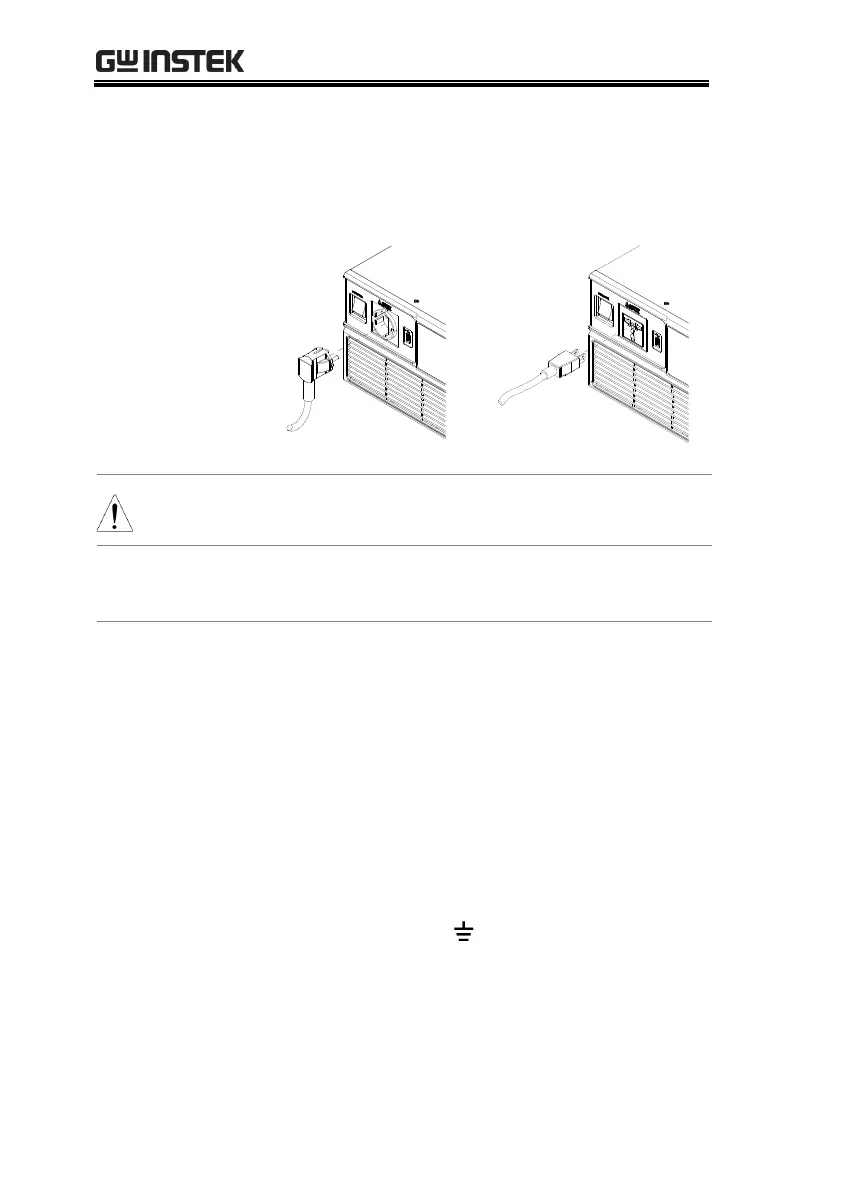

Front Panel
Output
Connection
1. The front panel has a multi-region power
socket depending on the socket type.
2. Insert the plug from the DUT into the socket.
EURO CEE socket
IEC North America, Japan
WARNING
Dangerous voltages. Ensure output is off before
unplugging the plug from the front panel socket.
3. Turn the power on. The AC power supply is
now ready to power the DUT.
Rear Panel Output
Connection
The rear panel output is used to supply higher
power DUTs.
1. Disconnect the unit from the mains power
socket and turn the power switch off.
2. Connect the output AC power wires to the AC
output terminals.
 Red  Line (L)
 Black  Neutral (N)
 Green  GND ( )

GW Instek ASR-3000 Series Specifications

General

Brand	GW Instek
Model	ASR-3000 Series
Category	Portable Generator
Language	English
