DST01-22

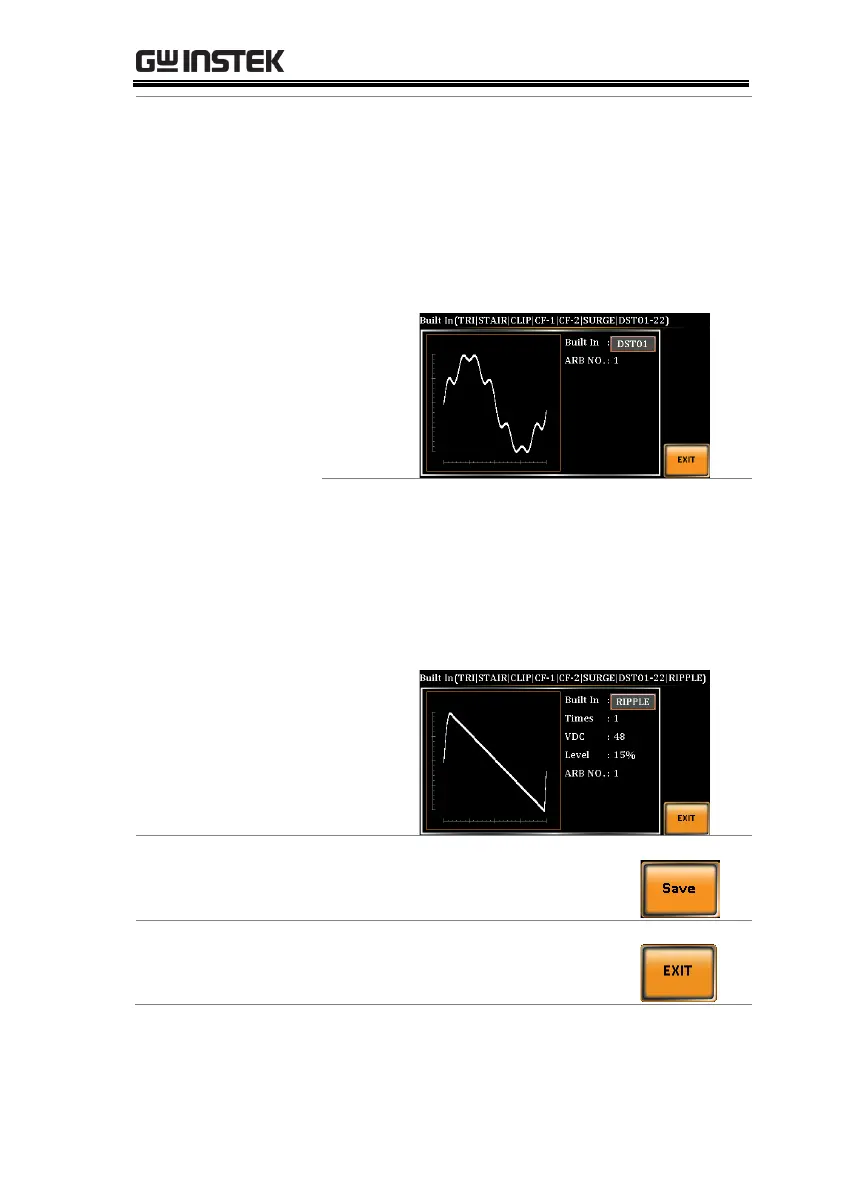

The DST01-22 waveform shape
function simply adds a number Fourier
series terms to create an arbitrary
waveform.
Attributes:
Type: 1 ~ 22 (Number of selectable
ARB waveforms)
ARB NO: 1 ~ 16
RIPPLE
The RIPPLE waveform shape function
has a settable DC ripple attributes.
Attributes:
Times: 1/2/3/6
VDC: 1~100
Level: 1%~30%
ARB NO: 1 ~ 16
Save
4. Press Save[F1] to save the
Arbitrary Edit settings.
Exit
5. Press Exit[F4] to exit from the
Arbitrary Edit settings.
