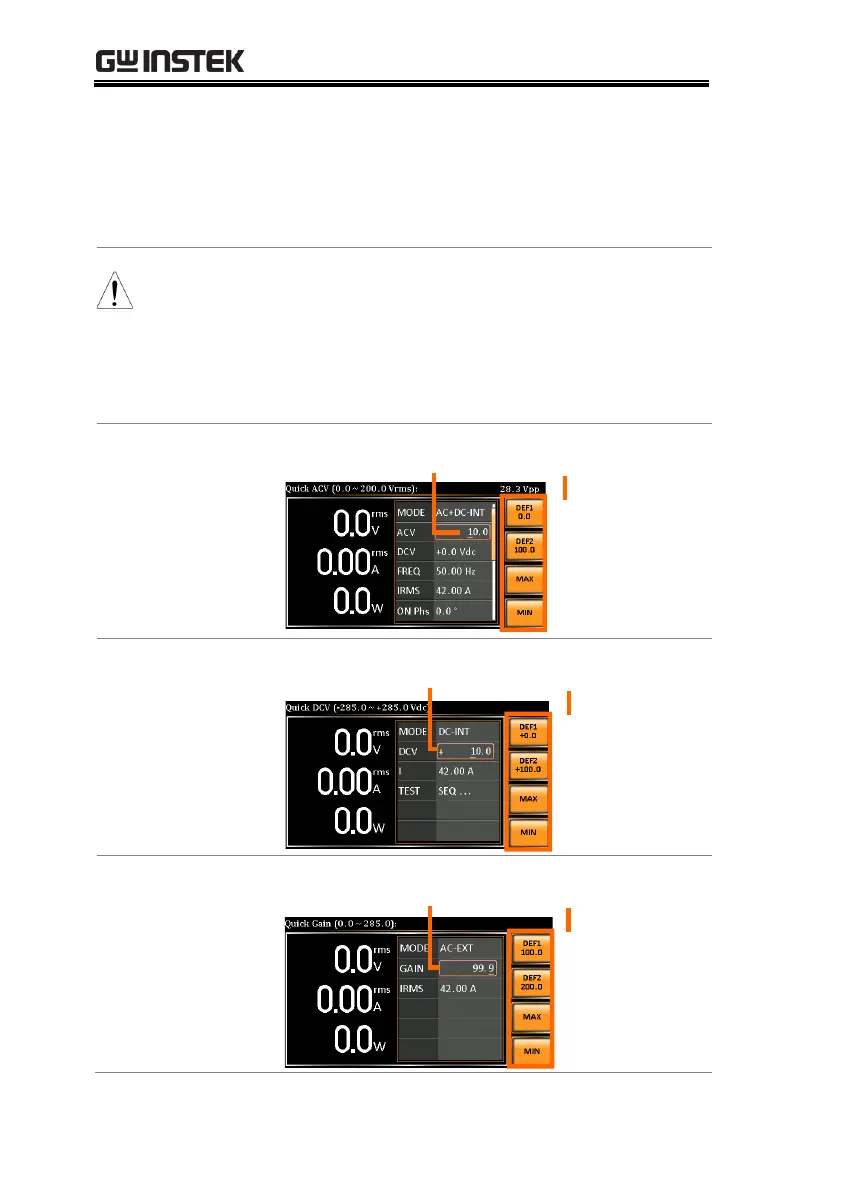

5. Press and hold either the DEF1 or DEF2 soft-
key until “Saved to DEF1/2” is displayed,
which indicates the voltage and gain settings
are saved to the DEF1 or DEF2 soft-key
individually.
Note
 Trying to set the voltage outside of the voltage
limit/range will result in a voltage setting error
being displayed on the screen.
 ACV, DCV and GAIN settings under each output
mode and range have their own DEF1 and DEF2
saved values, respectively.
Example of ACV
Setting in the
AC+DC-INT
ACV setting
Defined setting
F3
F4
F1
F2
Example of DCV
Setting in the
DC-INT
DCV setting
Defined setting
F3
F4
F1
F2
Example of GAIN
Setting in the
AC+DC-EXT
GAIN setting
Defined setting
F3
F4
F1
F2
