OPERATION

Freq Hi

Setting

Freq Lo

Setting

4. Press Enter to confirm the limit setting.

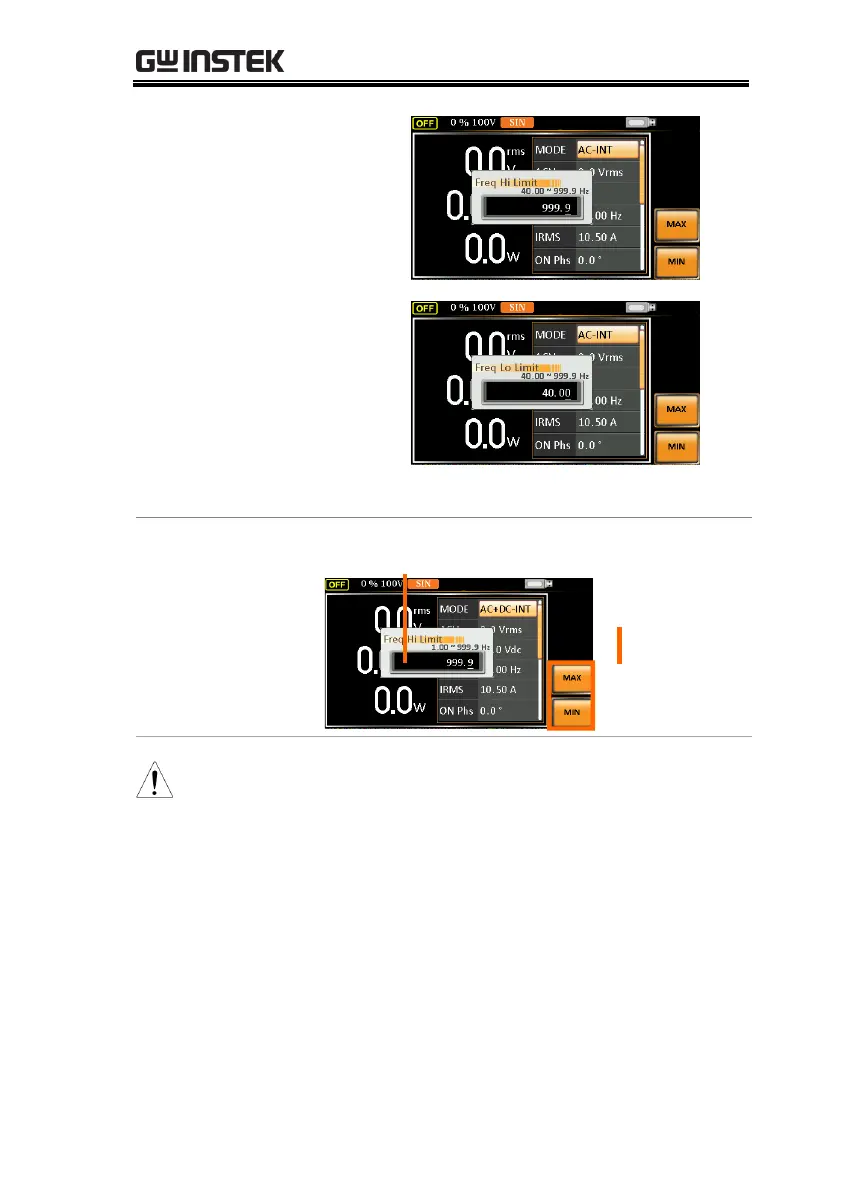

Example of Freq

Hi Limit Setting

in AC+DC-INT

Freq Limit setting

Min/Max

settings

Note

 Frequency limit setting is Not available under DC-

INT, AC+DC-EXT, AC-EXT, AC+DC-Sync and AC-

Sync output modes.

 Before change freq limit setting, if FREQ setting

value is bigger than desire freq limit value, the freq

limit value cannot be change accordingly.

 The range of frequency limit will be limited within

the certain minimum value in accordance with the

output frequency setting.

 There are 2 sets of frequency limits in total.
