3. Set the peak current (IPK+ & IPK-) with the
scroll wheel or with the F3 (MAX) and F4 (MIN)
soft-keys to set the current limit to the maximum
and minimum values, respectively.
AC+DC-INT, AC–INT, DC-INT, AC+DC-EXT,
AC–EXT, AC+DC-ADD, AC–ADD, AC+DC-
Sync, AC-Sync, AC-VCA
IPK+
Range
50 ~ 105% of rate peak
current
Soft-keys
IPK Limit On/Off, MAX,
MIN
IPK-
Range
-105 ~ -50% of rate peak
current
Soft-keys
IPK Limit On/Off, MAX,
MIN

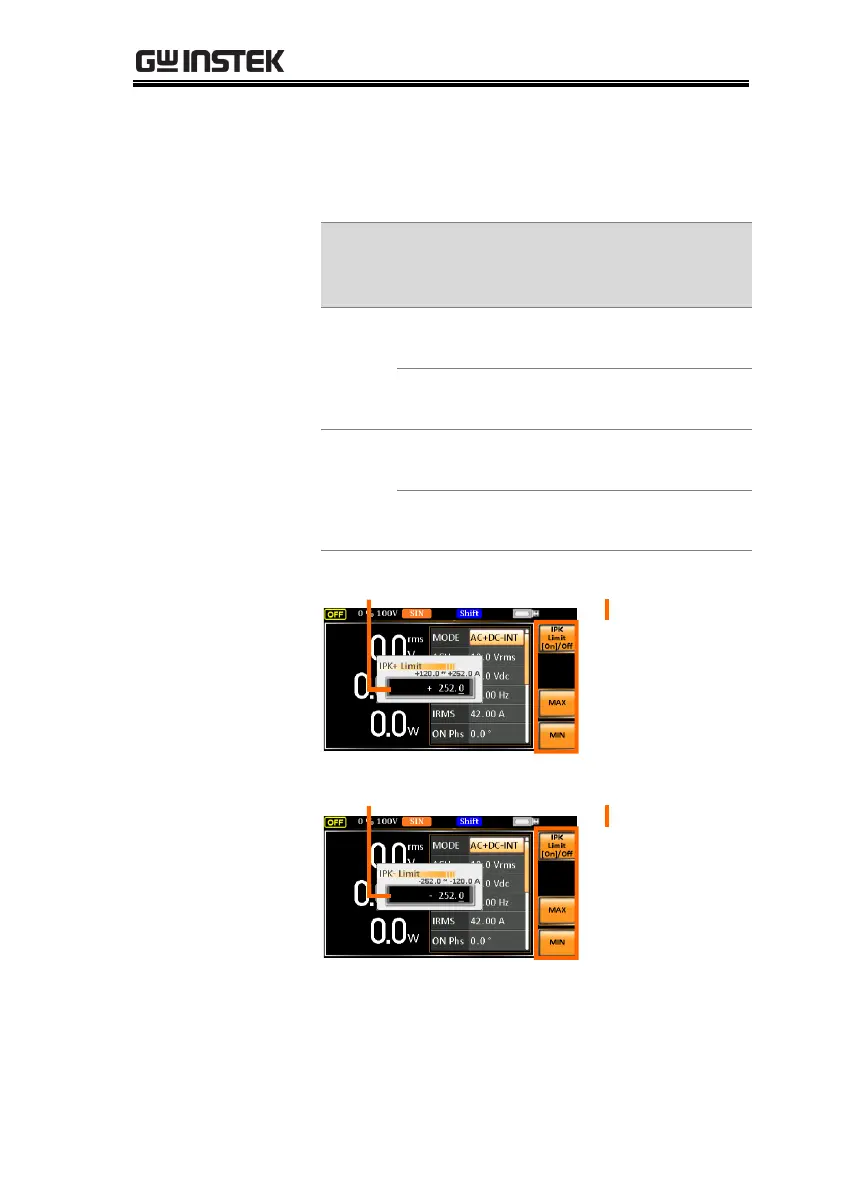

Example of IPK+
Limit Setting in
the AC+DC-INT
IPK+ Limit setting Soft-keys setting
F3
F4
F1
Example of IPK-
Limit Setting in
the AC+DC-INT
IPK- Limit setting Soft-keys setting
F3
F4
F1
