OPERATION
85
Soft-keys
IRMS Limit On/Off, IPK
CLR, MAX, MIN

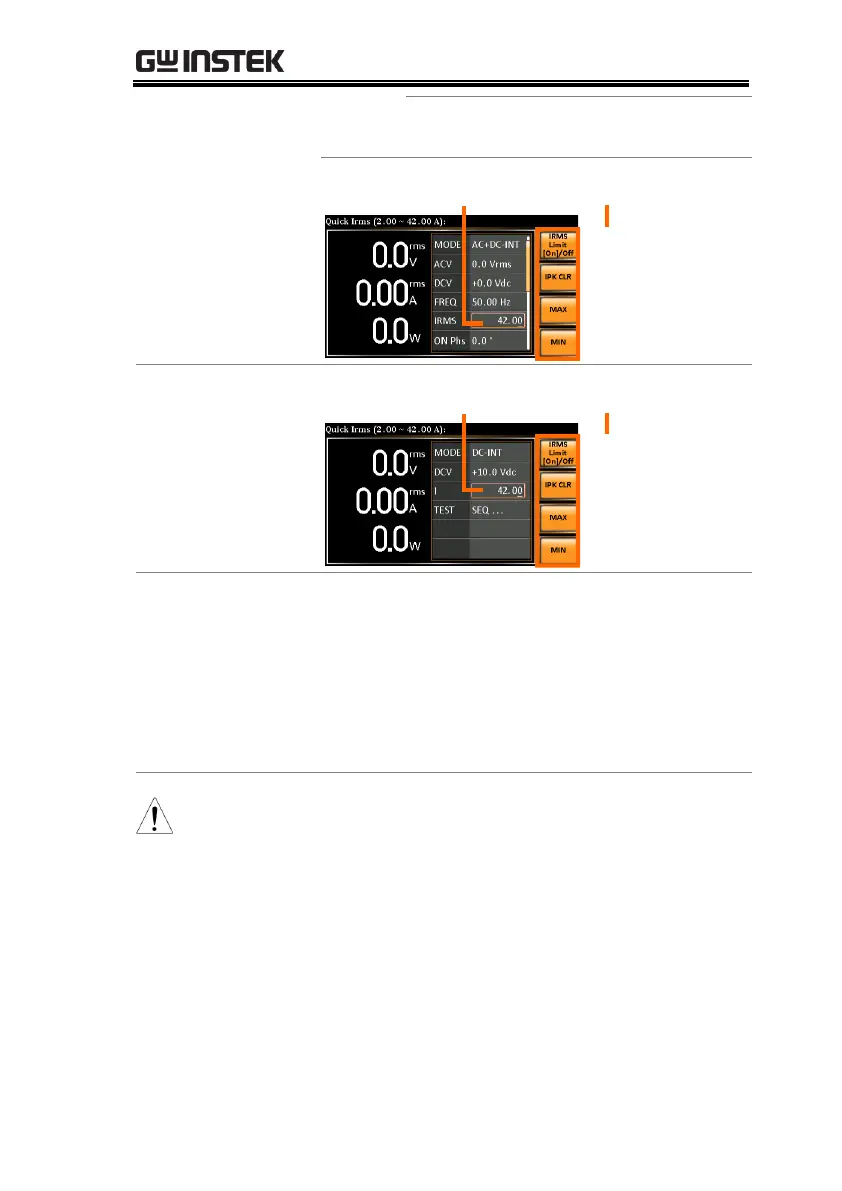

Example of IRMS
Setting in the
AC+DC-INT
IRMS setting
Soft-keys setting
F3
F4
F1
F2
Example of I
Setting in the
DC-INT
I setting
Soft-keys setting
F3
F4
F1
F2
IRMS & I Limit
On/Off
Almost identical with the concept of previous IPK
Limit function, the IRMS/I Limit function keeps the
IRMS/I value within the certain limit when the
predefined value is reached. If, on the other hand,
this function is turned off, the output will be
disabled instantly when IRMS/I Limit off level is
reached.
Note
IRMS Limit is set ON by default. The IRMS minimum
value will not be less than 1A.
