[Sysname] interface ethernet 1/0
[Sysname-Ethernet1/0] qos trust dot1p
[Sysname-Ethernet1/0] quit
# Create a clear-type WLAN service template, configure its SSID as market, configure its
authentication method as Open System, and then enable the WLAN service template.
[Sysname] wlan service-template 1 clear
[Sysname-wlan-st-1] ssid market
[Sysname-wlan-st-1] authentication-method open-system
[Sysname-wlan-st-1] service-template enable
# Configure the radio type as 802.11g for radio interface WLAN-Radio 2/0, and map service
template 1 to interface WLAN-BSS1 on the radio interface.
[Sysname] interface wlan-radio 2/0
[Sysname-WLAN-Radio2/0] radio-type dot11g
[Sysname-WLAN-Radio2/0] service-template 1 interface wlan-bss 1
# Configure radio interface WLAN-radio 2/0 to allow up to ten users to use high-priority AC
queues (including AC-VO and AC-VI queues).
[Sysname-WLAN-Radio2/0] wmm edca client ac-vo cac
[Sysname-WLAN-Radio2/0] wmm edca client ac-vi cac
[Sysname-WLAN-Radio2/0] wmm cac policy users 10
[Sysname-WLAN-Radio2/0] wmm enable
[Sysname-WLAN-Radio2/0] quit
If a client wants to use a high-priority AC queue (AC-VO or AC-VI queue), it must send a
request to the AP. If the number of clients using high-priority AC queues (including AC-VO and
AC-VI queues) plus the clients requesting for high-priority AC queues on the AP is smaller than
or equal to the maximum number of high-priority AC clients (10 in this example), the request is
accepted. If the number of client exceeds the maximum number of high-priority AC clients, the
system decreases the priority of the packets from the excessive clients.
SVP service configuration example
1. Network requirements
As shown in Figure 31, the fat AP is conne
cted to the Ethernet and has WMM enabled.
On the fat AP, SVP packets are assigned to the AC-VO queue. To guarantee the highest
priority for the AC-VO queue, ECWmin and ECWmax are set to 0 for the AC-VO queue.

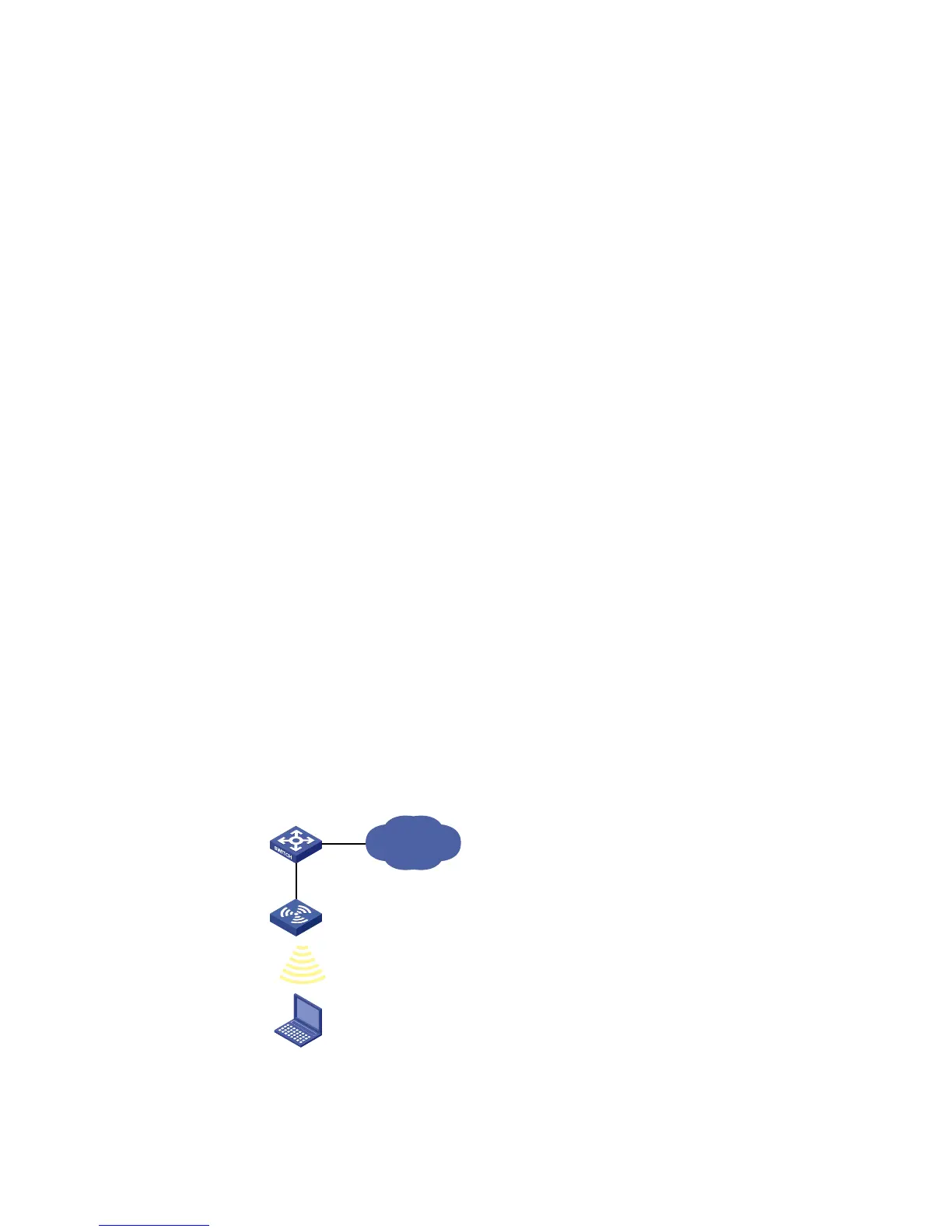

Figure 31 Network diagram
2. Configuration procedure
IP network
L2 Switch
FAT AP
Client
