H3C MSR Series Configuration Guide

47

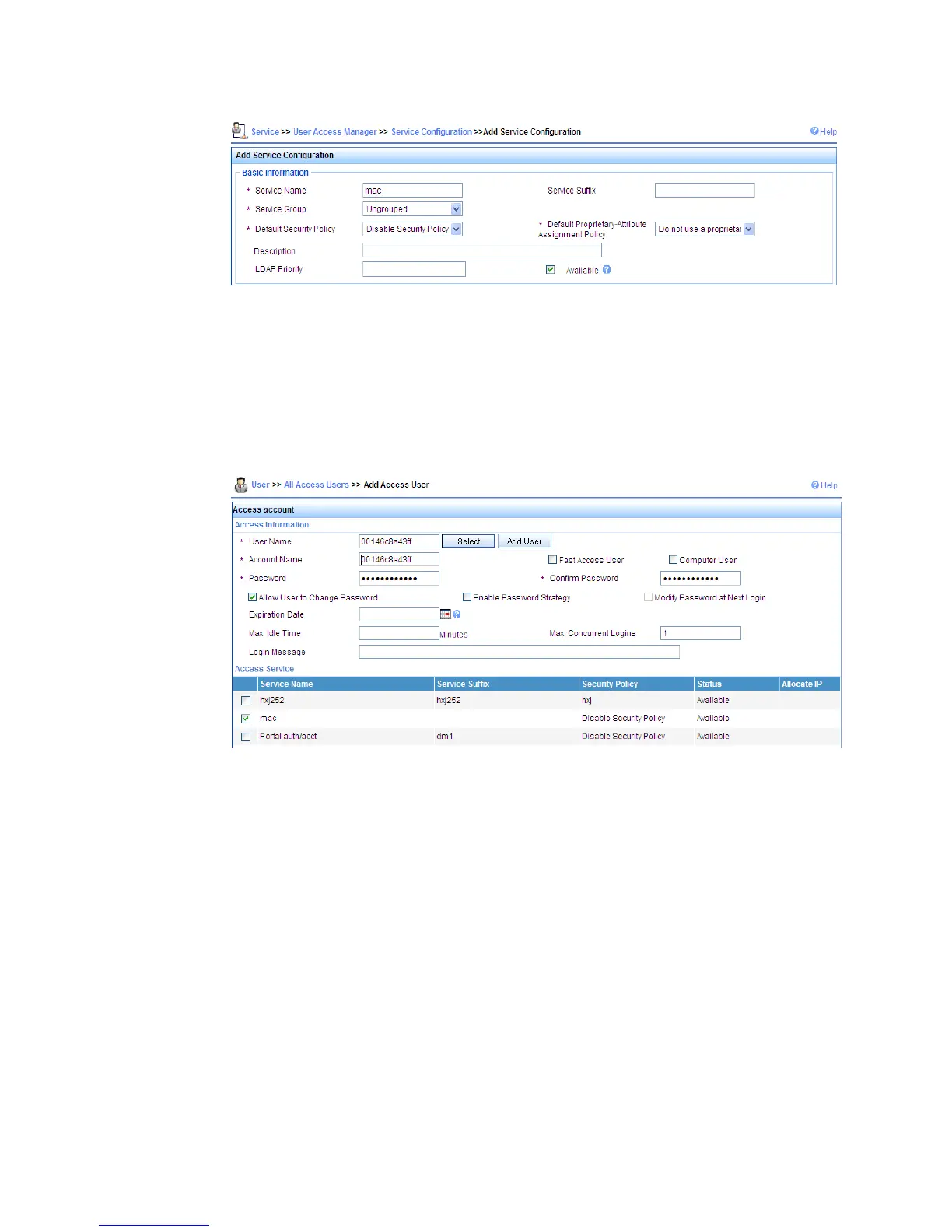

Figure 19 Adding a service
3. Add an account:
a. Click the User tab.
b. Select User > All Access Users from the navigation tree to enter the user page.
c. Click Add.
d. On the page that appears, enter username 00146c8a43ff, set the account name and
password both to 00146c8a43ff, select the service mac, and click Apply.
Figure 20 Adding an account
Verifying the configuration
• After the client passes the MAC address authentication, the client can associate with the AP
and access the WLAN.
• You can use the display wlan client command, the display connection command, and the
display mac-authentication command to view the online clients.
802.1X authentication configuration example
Network requirements
As shown in Figure 21, configure the FAT AP to perform 802.1X authentication on the client.

H3C MSR Series Specifications

General

Category	Network Router
IPv6 Support	Yes
Dimensions	Varies by model
Weight	Varies by model
Product Type	Modular Router
Ports	Varies by model
WAN Interfaces	Varies by model
Firewall	Yes
QoS	Yes
Wireless Support	Varies by model
USB Ports	Varies by model
Console Port	Yes
Power Supply	Varies by model
Redundancy	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
Series	MSR
Certifications	CE, FCC, RoHS
