H3C MSR Series Configuration Guide

46

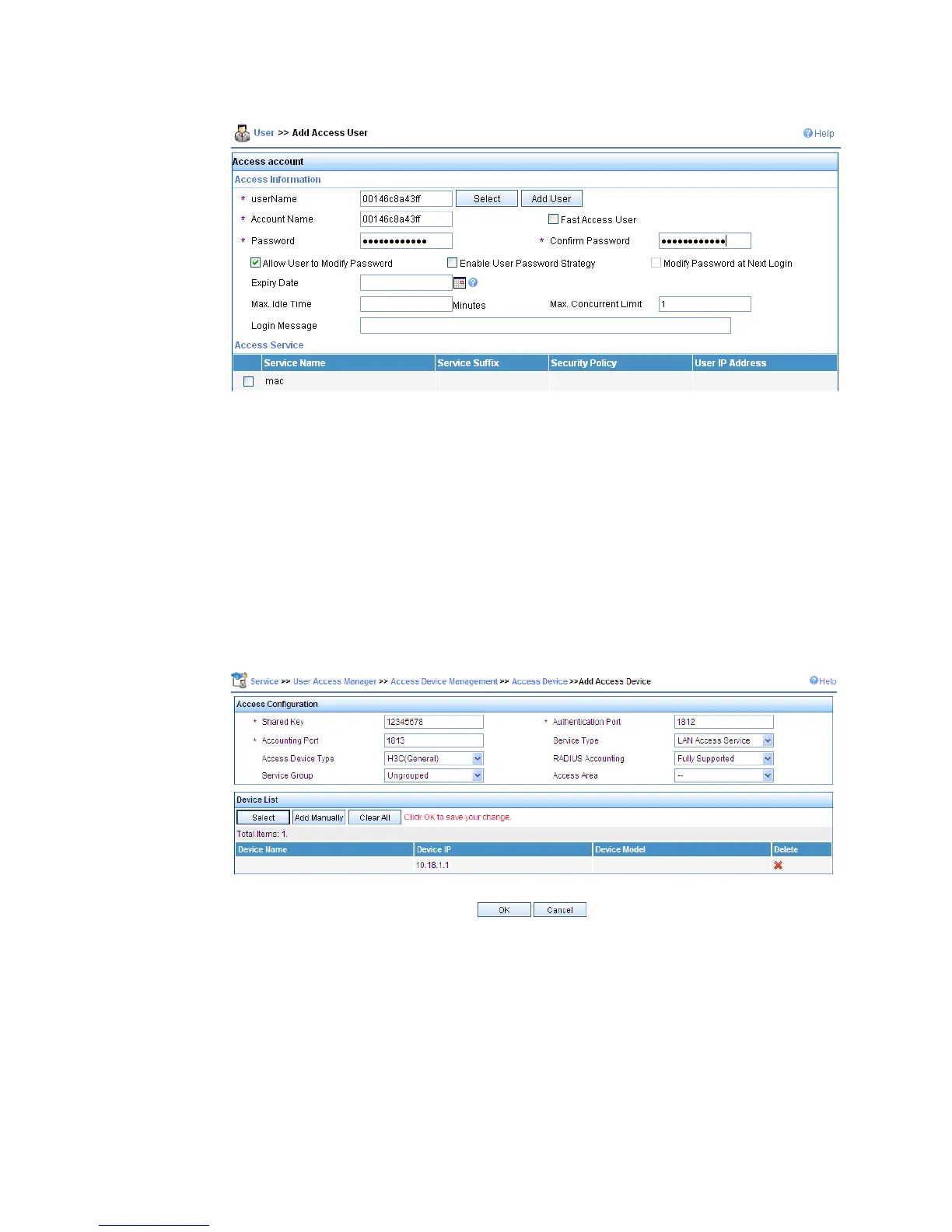

Figure 17 Adding an account
Configuring the RADIUS server (IMCv5)
The following takes the IMC (the IMC versions are IMC PLAT 5.0 and IMC UAM 5.0) as an example
to illustrate the basic configurations of the RADIUS server.
1. Add an access device:
a. Click the Service tab in the IMC platform.
b. Select User Access Manager > Access Device Management from the navigation tree.
c. Click Add.
d. On the page that appears, enter 12345678 as the Shared Key, keep the default values for
other parameters, and select or manually add the access device with the IP address
10.18.1.1, and click Apply.
Figure 18 Adding an access device
2. Add a service:
a. Click the Service tab.
b. Select User Access Manager > Service Configuration from the navigation tree.
c. Click Add.
d. On the page that appears, set the service name to mac, keep the default values for other
parameters, and click Apply.

H3C MSR Series Specifications

General

Category	Network Router
IPv6 Support	Yes
Dimensions	Varies by model
Weight	Varies by model
Product Type	Modular Router
Ports	Varies by model
WAN Interfaces	Varies by model
Firewall	Yes
QoS	Yes
Wireless Support	Varies by model
USB Ports	Varies by model
Console Port	Yes
Power Supply	Varies by model
Redundancy	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
Series	MSR
Certifications	CE, FCC, RoHS
