H3C MSR Series Configuration Guide

22
[AP] interface wlan-bss 1
[AP-WLAN-BSS1] quit
# Configure a clear type WLAN service template with no authentication.
[AP] wlan service-template 1 clear
[AP-wlan-st-1] ssid service
[AP-wlan-st-1] authentication-method open-system
[AP-wlan-st-1] service-template enable
[AP-wlan-st-1] quit
# Bind WLAN-Radio 2/0 to service template 1 and WLAN-BSS 1.
[AP] interface WLAN-Radio 2/0
[AP-WLAN-Radio2/0] radio-type dot11gn
[AP-WLAN-Radio2/0] service-template 1 interface WLAN-BSS 1
2. Verify the configuration:
{ The clients can associate with the APs and access the WLAN.
{ You can use the display wlan client verbose command to view the online clients. The
command output displays the 802.11n client information.
Workgroup bridge mode configuration example
Network requirements
As shown in Figure 9, the AP is connected to a LAN, and the workgroup bridge is connected to the
AP as a client and is connected to the PCs and printer through its Ethernet port. The workgroup
bridge uses the shared-key (WEP) authentication method to access the wireless service China-net.

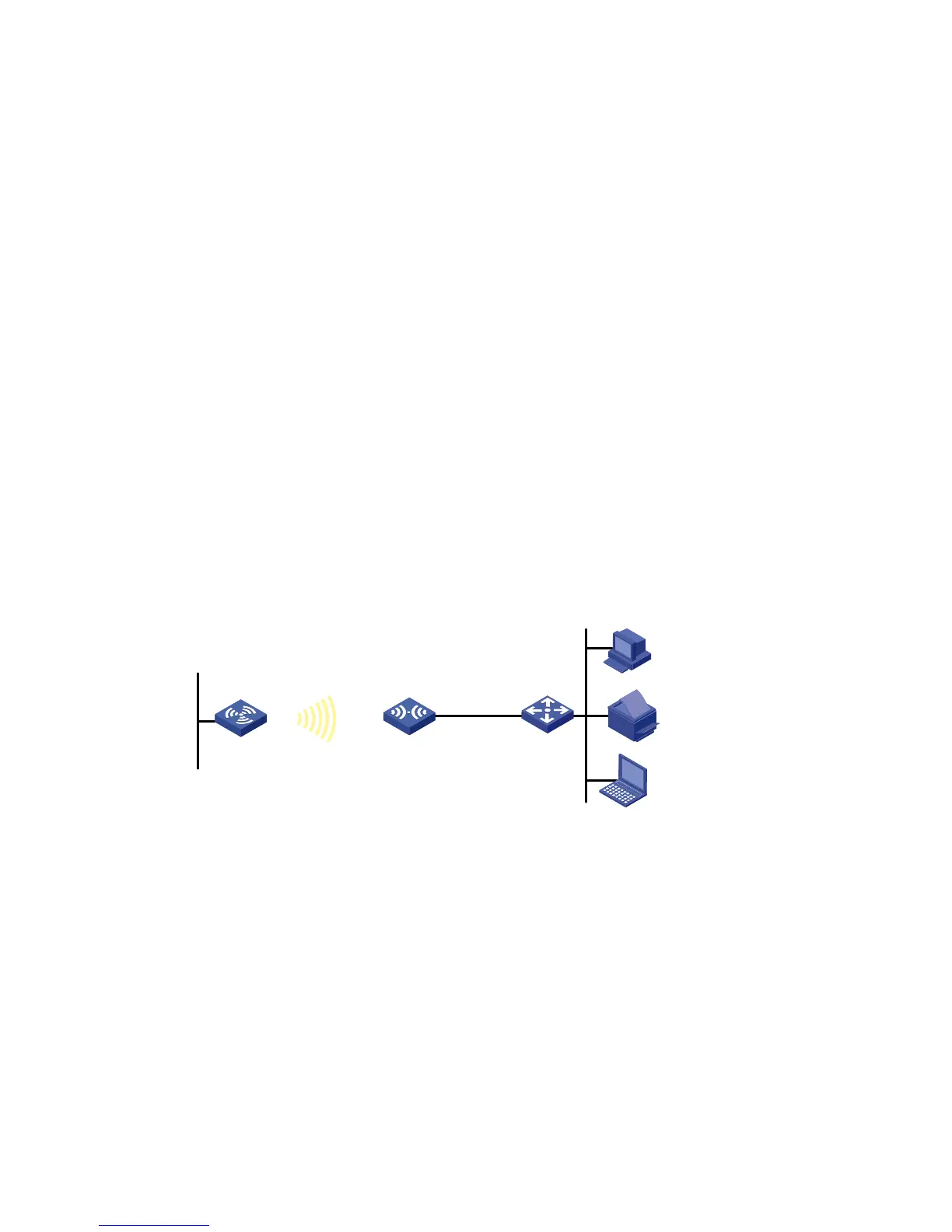

Figure 9 Network diagram
Configuration procedure
# Create a WLAN-BSS interface.
<AP> system-view
[AP] interface WLAN-BSS1
[AP-WLAN-BSS1] quit
# Enable workgroup bridge mode and bind the radio to the WLAN-BSS interface.
[AP] interface WLAN-Radio 2/0
[AP-WLAN-Radio2/0] client-mode interface wlan-bss 1
# Configure the authentication method.
[AP-WLAN-Radio2/0] client-mode authentication-method shared-key
# Configure the cipher suite and pre-shared key.
[AP-WLAN-Radio2/0] client-mode cipher-suite wep40 key pass-phrase simple 12345
AP
Workgroup Bridge
LAN Segment
Hub
PC
Printer
Client
