2-25

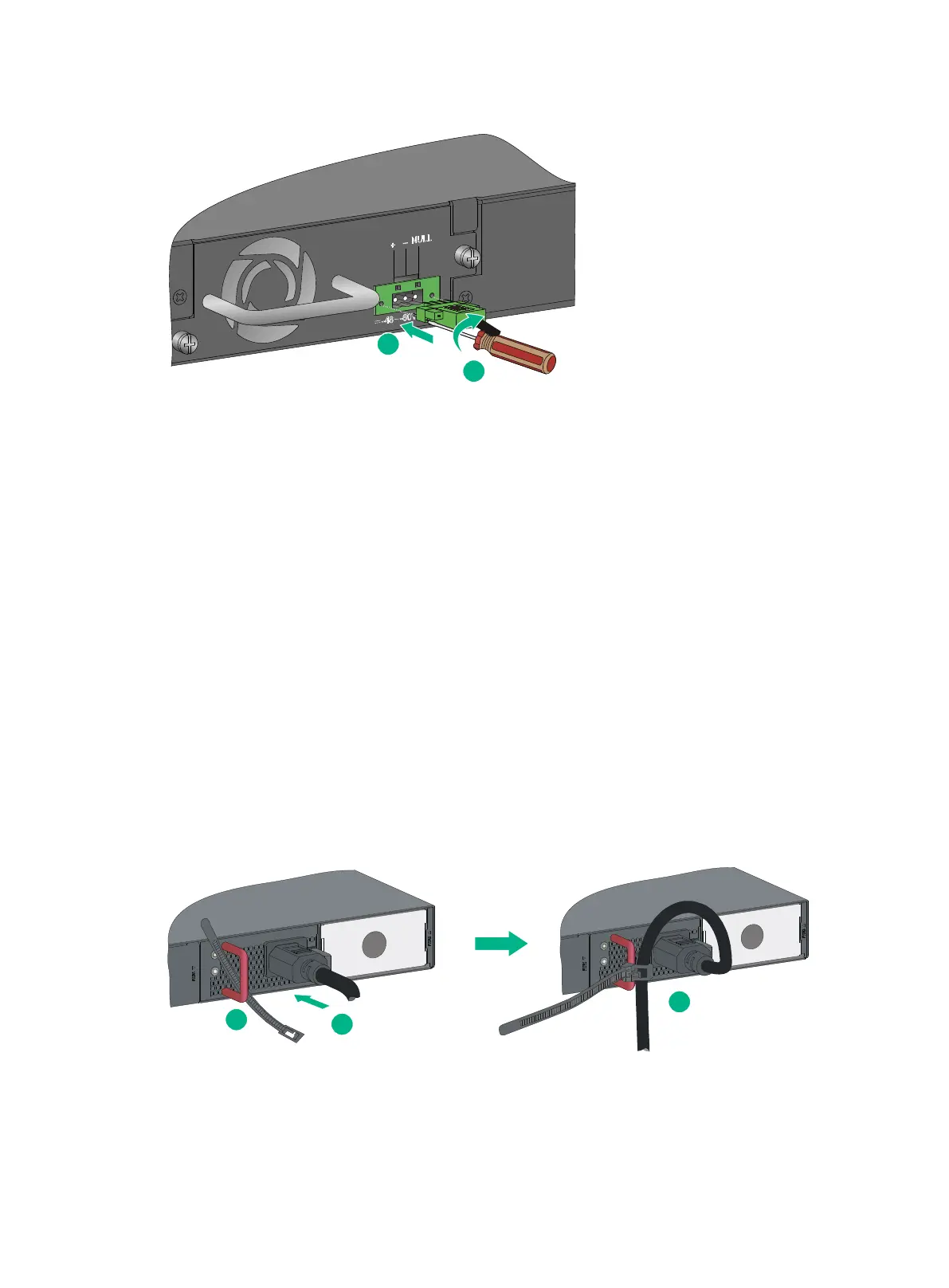

Figure 2-29 Connecting the power cord for a PSR150-D1 power supply
Connecting the power cord for a
PSR180-56A/PSR360-56A/PSR720-56A/PSR1110-56A
power supply
The power cord connection procedure is the same for the PSR180-56A, PSR360-56A, PSR720-56A,
and PSR1110-56A power supplies. The following procedure uses a PSR720-56A power supply as an
example.
To connect the power cord for a PSR720-56A power supply:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Plug the female connector end of the power cord into the input socket of the power supply (see
callout 1 in Figure 2-30).
3. Use a cable tie to secure the power cord to the handle of the power supply (see callout 2 and
callout 3 in Figure 2-30).
4. Connect the other end of the power cord to a power source.
For a PSR360-56A, PSR720-56A, or PSR1110-56A power supply, connect the power cord to
an AC power source. For a PSR180-56A power supply, connect the power cord to an AC power
source or a 240V high-voltage DC power source.
Figure 2-30 Connecting the power cord for a PSR720-56A power supply
