21

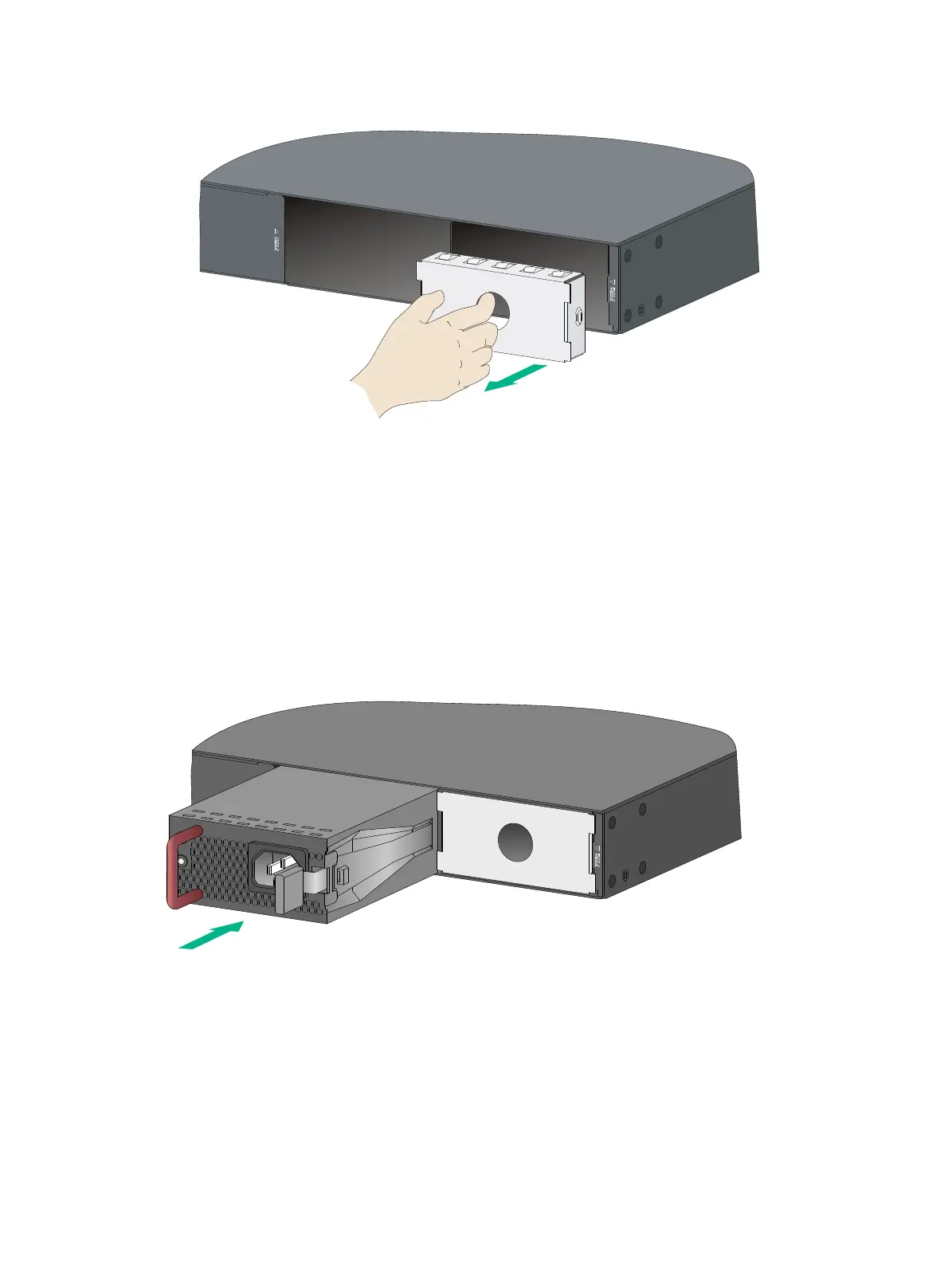

Figure 26 Removing the filler panel
3. Unpack the power module and verify that the power module model is correct.
Put away the packaging box and packaging bag of the power module for future use.
4. Correctly orient the power module with the power module slot (use the letters on the power
module faceplate for orientation), grasp the handle of the power module with one hand and
support its bottom with the other, and slide the power module slowly along the guide rails into
the slot until you hear that the latch of the power module clicks into the slot.
When you insert the power module into the slot, you can do that through slight inertia so that the
terminals of the power module can have a good contact with the backplane.
5. Install the filler panel over the empty power module slot to prevent dust and ensure good
ventilation if you install only one power module.
Figure 27 Installing the power module
