H3C S5560X-EI Series User Manual

29

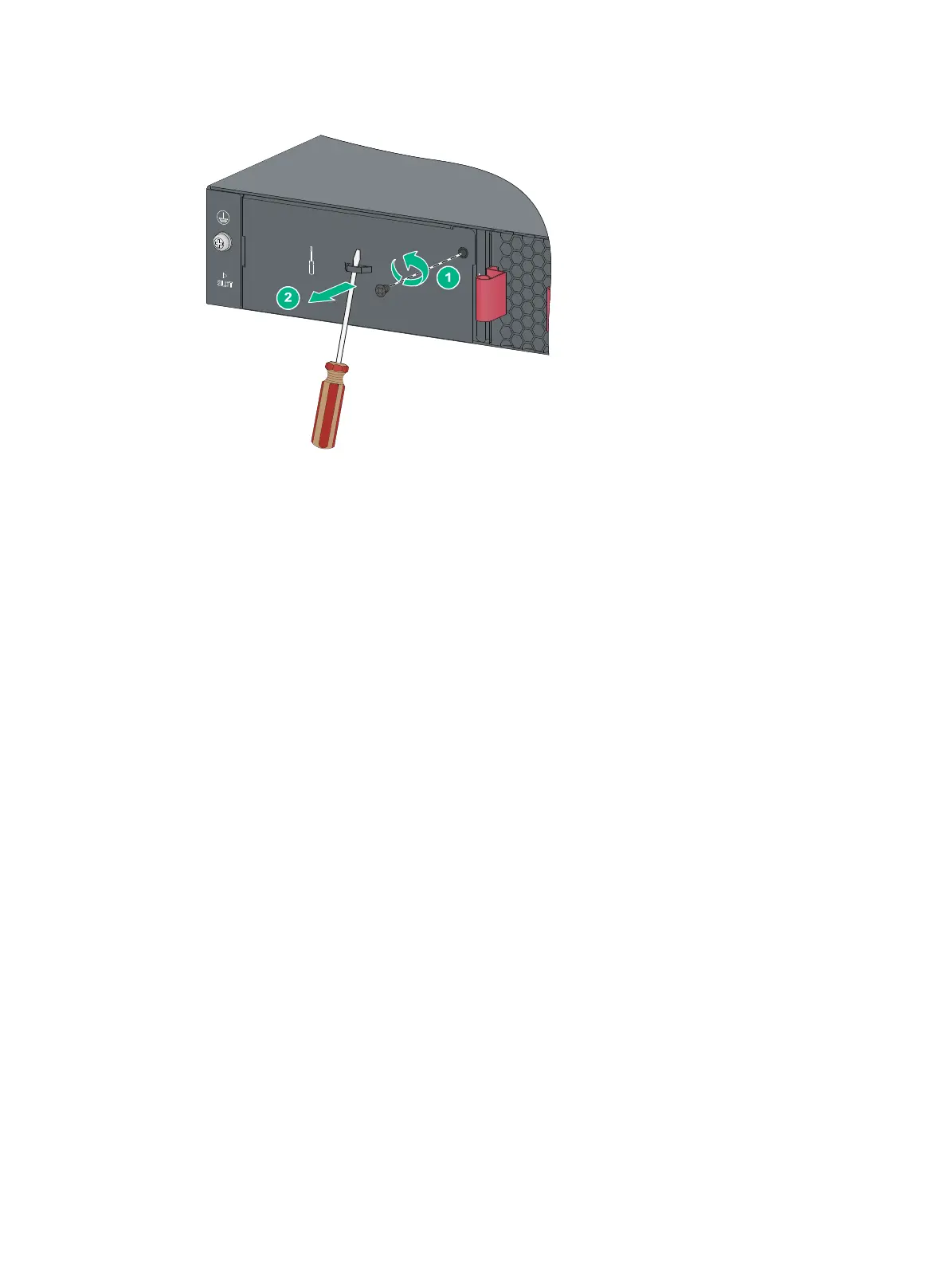

Figure 38 Removing the filler panel over the expansion slot
3. Unpack the expansion card.
4. If the expansion card has an ejector lever, follow these steps to install it:
a. Rotate out the ejector lever, as shown by callout 1 in Figure 39.
b. Gently push the expan
sion card into the slot along the guide rails until the expansion card
has good contact with the chassis. See callout 2 in Figure 39.
c. Rotate in the
ejector lever, as shown by callout 3 in Figure 39.
d. Use a Philli
ps screwdriver to tighten the captive screws on the expansion card to secure it in
the slot. See callout 4 in Figure 39.
5. If the expansi
on card does not have an ejector lever, follow these steps to install it:
a. Gently push the expansion card into the slot along the guide rails until the expansion card
has good contact with the chassis. See callout 1 Figure 40.
b. Use a Philli
ps screwdriver to tighten the captive screws on the expansion card to secure it in
the slot. See callout 2 Figure 40.
