H3C S6850 Series Installation Guide

6

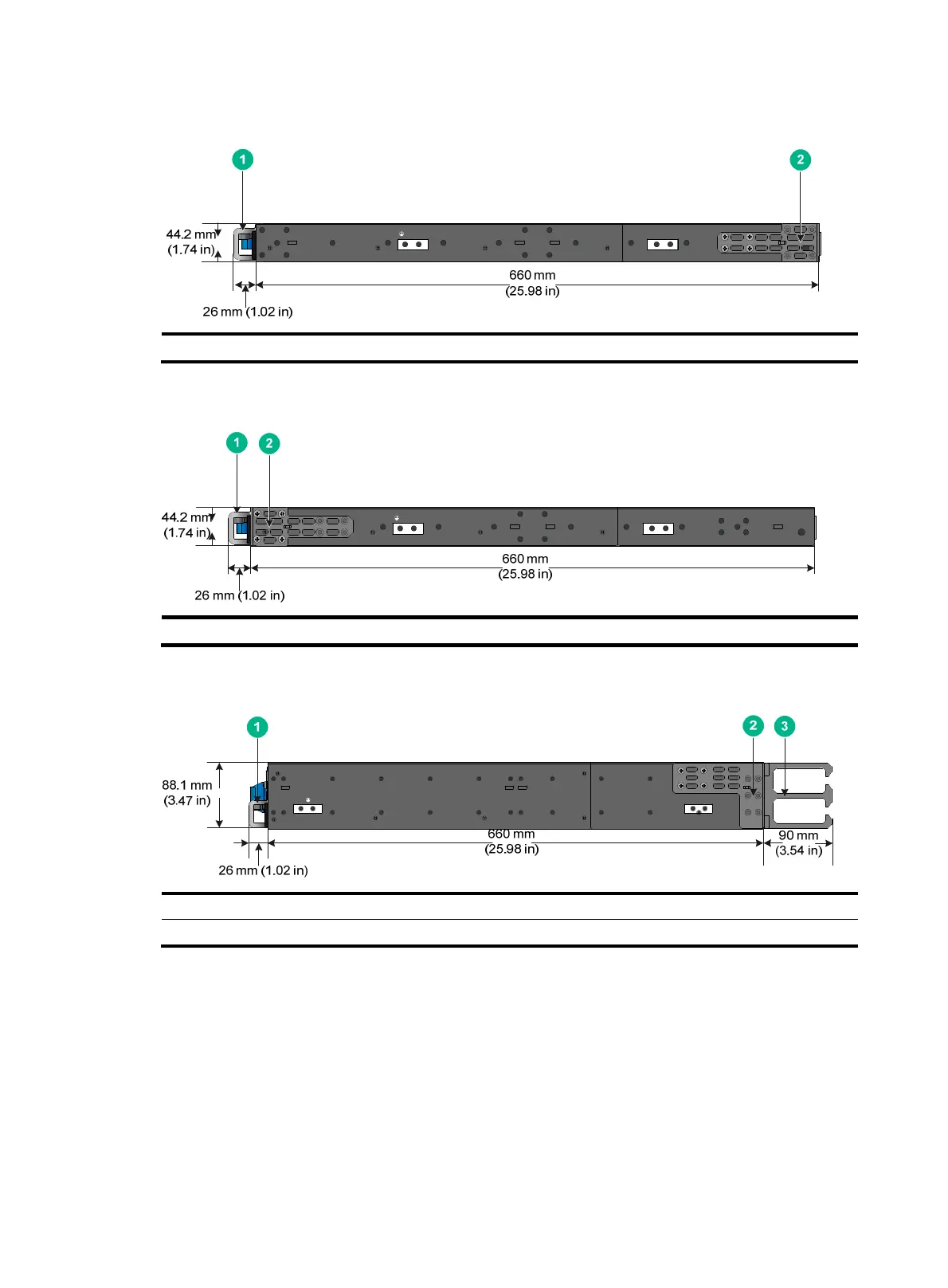

Figure 5 S6850-2C chassis dimensions (mounting brackets installed at the port side, left-side
view)
(1) Power module handle (2) Mounting bracket
Figure 6 S6850-2C chassis dimensions (mounting brackets installed at the power module
side, left-side view)
(1) Power module handle (2) Mounting bracket
Figure 7 S9850-4C chassis dimensions (mounting brackets installed at the port side, left-side
view)
(1) Power module handle (2) Mounting bracket
(3) Cable management bracket
