19
INSTALLATION
June 1999
96-8000
The anchor bolts must be torqued in three increments. Once the machine is level, torque the anchors to 30 FT-
LB. in the pattern shown below, then recheck the level. At this point it is possible to adjust the leveling screws
without loosening the anchors, if needed.

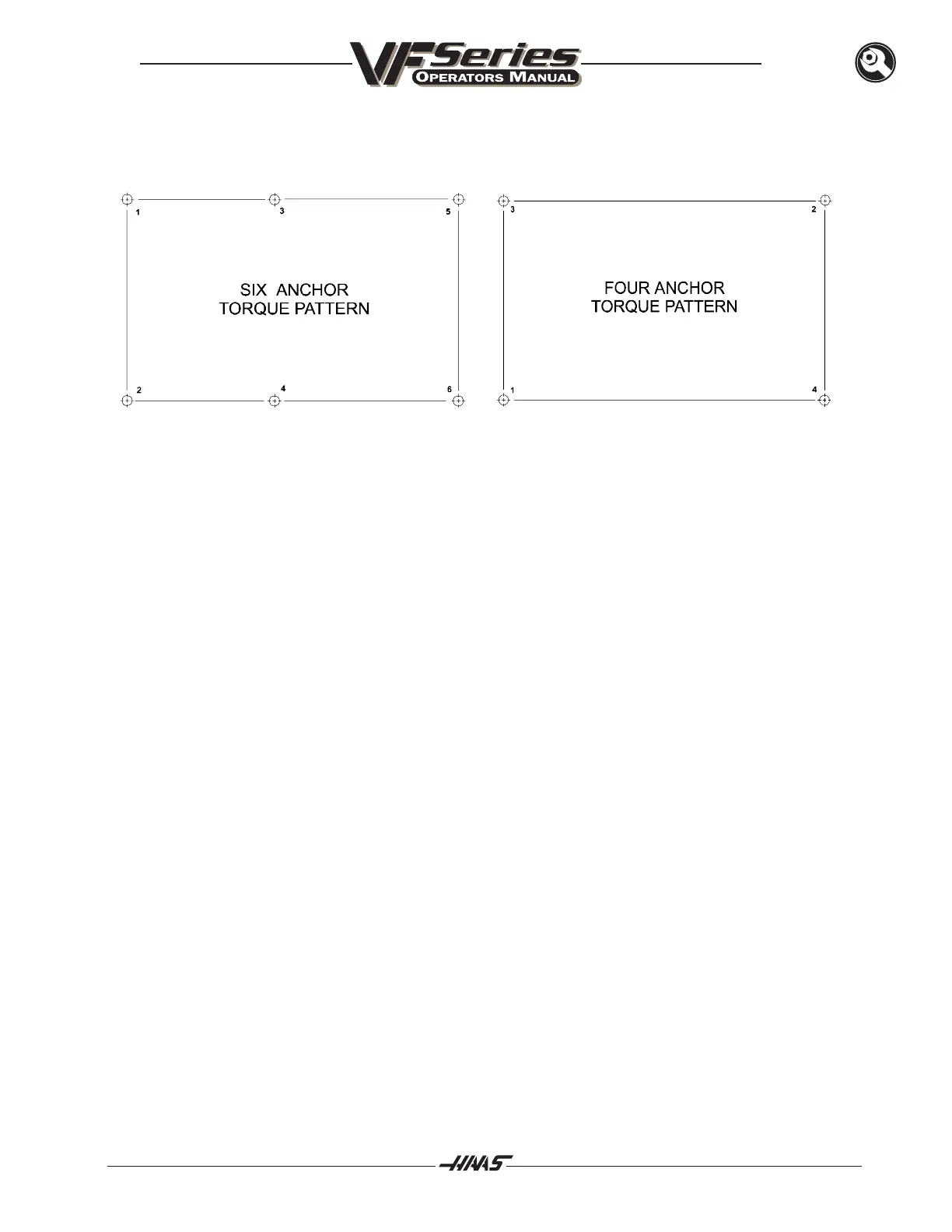

Machine torque patterns
Continue to torque the anchors up to 50 FT-LB. in the same pattern, then recheck the level and make any
necessary adjustments.
Finally torque the anchors to 80 FT-LB and recheck the level. At this point you will only be able to make very
minor adjustment without loosening the anchors.
Do not overtighten the bolts or you could crack the concrete!
