INSTALLATION
June 1999
96-8000
OUTRIGGER L EVELING P ROCEDURES
NOTE: The standard VMC leveling procedures must be completed before starting this
section.

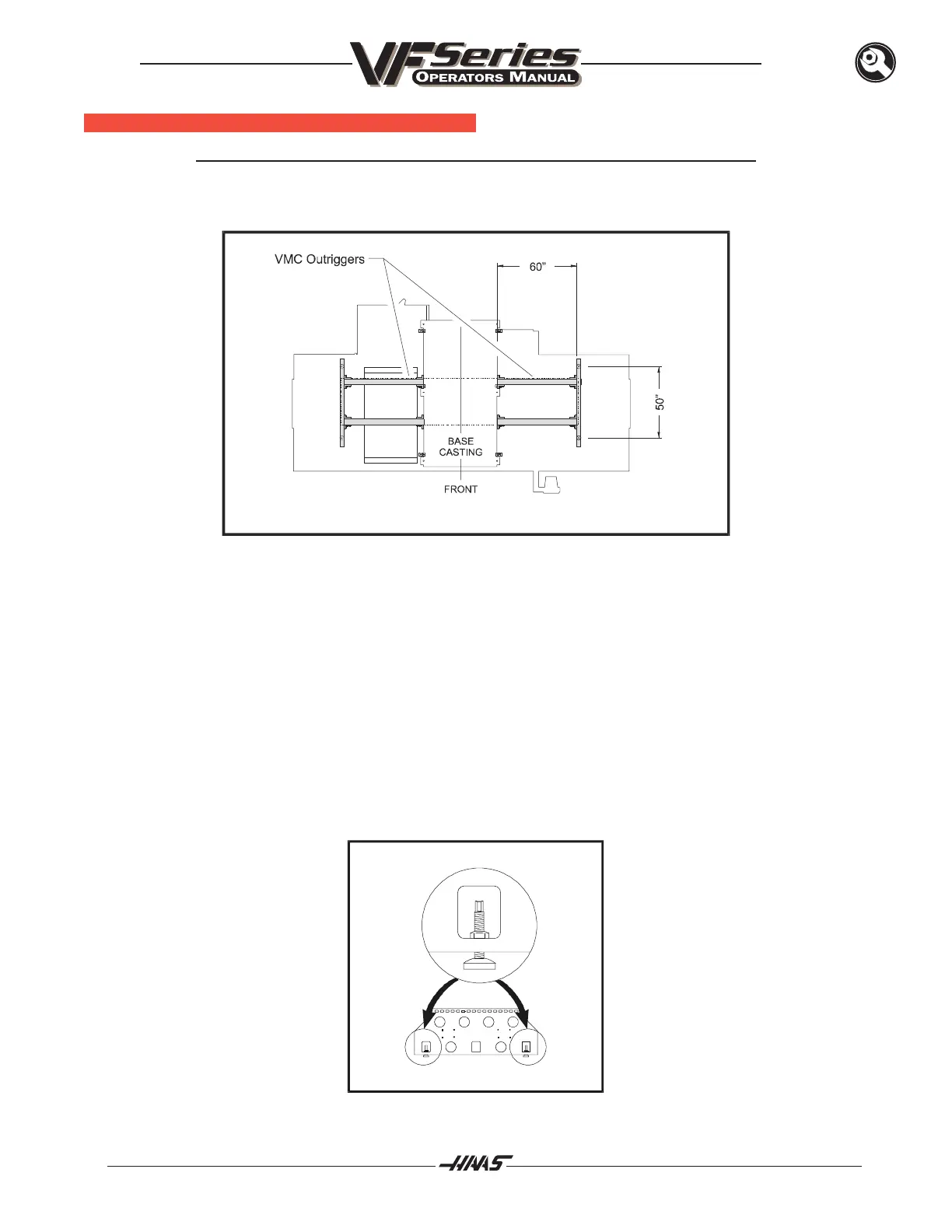

VMC Outrigger Locations
1. Locate the leveling pads underneath the outrigger leveling screws. Grease the dimples and keep
the screws at least 1/4" above the pads.
2. Place a level in the center of the table and parallel to the X-axis.
3. Jog the Y-axis back (toward the column) max travel.
4. Starting from either left or right of the machine, jog the table to the max X-travel and over the rear
outrigger leveling screw. DO NOT MOVE THE LEVEL.
Outrigger Leveling Screw Locations
