42
INSTALLATION
June 1999
96-8000

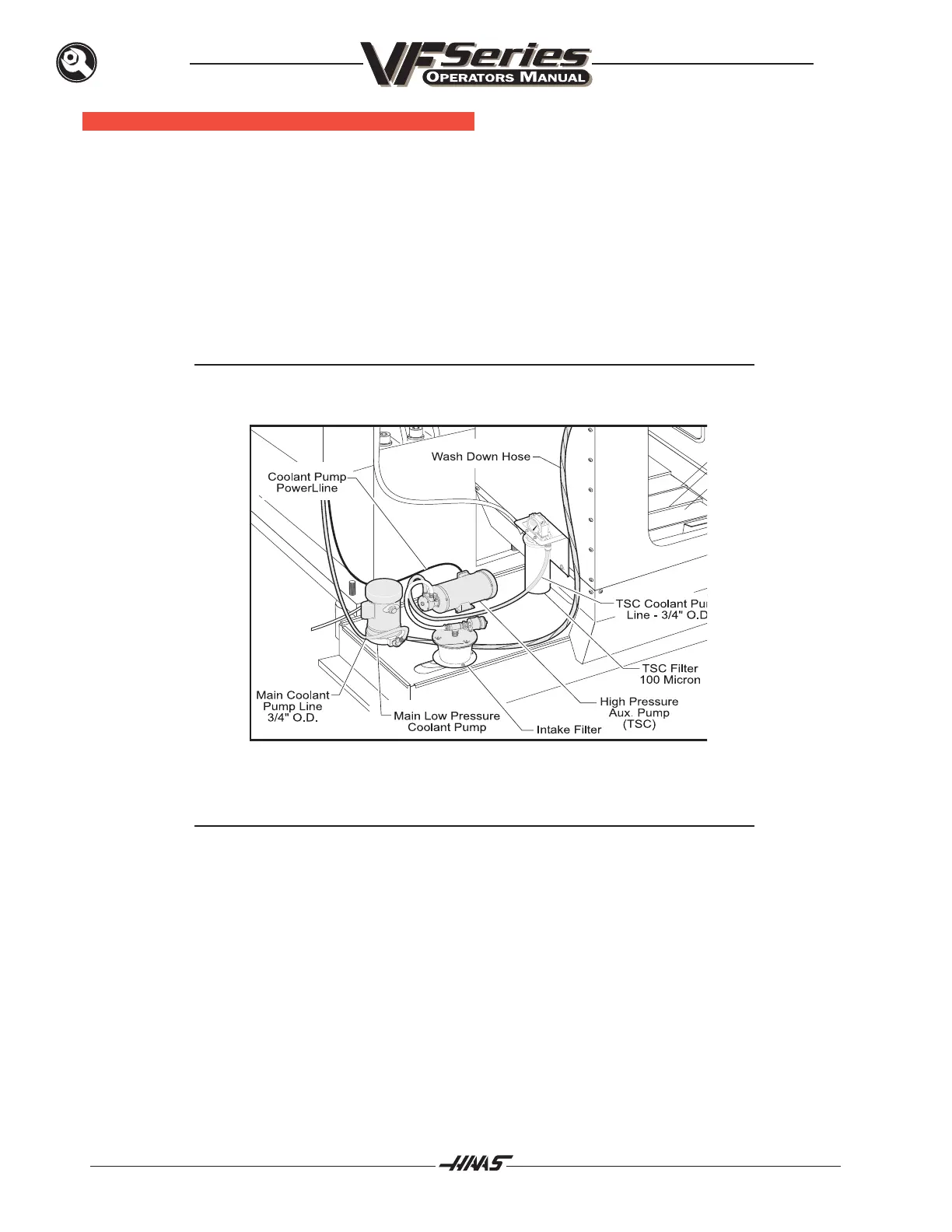

COOLANT T ANK I NSTALLATION
1. Position the coolant tank under the left side of the machine as shown.
2. Connect the main coolant line (3/4" O.D.) to the main pump.
3. Connect the main pump power line to the outlet on the right side of the electrical panel.
4. If machine includes Through the Spindle Coolant option, attach the 3/4" O.D. coolant line to the
TSC pump.
NOTE: The TSC power line is hard wired to the main pump power line.
5. Fill coolant tank with coolant (approximately 40 gallons). VF-6 through 10 (approx. 80 gallons)
NOTE: Before operating the coolant system, ensure the drain is positioned half way
over tank strainer.
6. Route the coolant return hose as shown.
To Next Page
