224
PROGRAMMING EXAMPLES
96-8000
June 1999

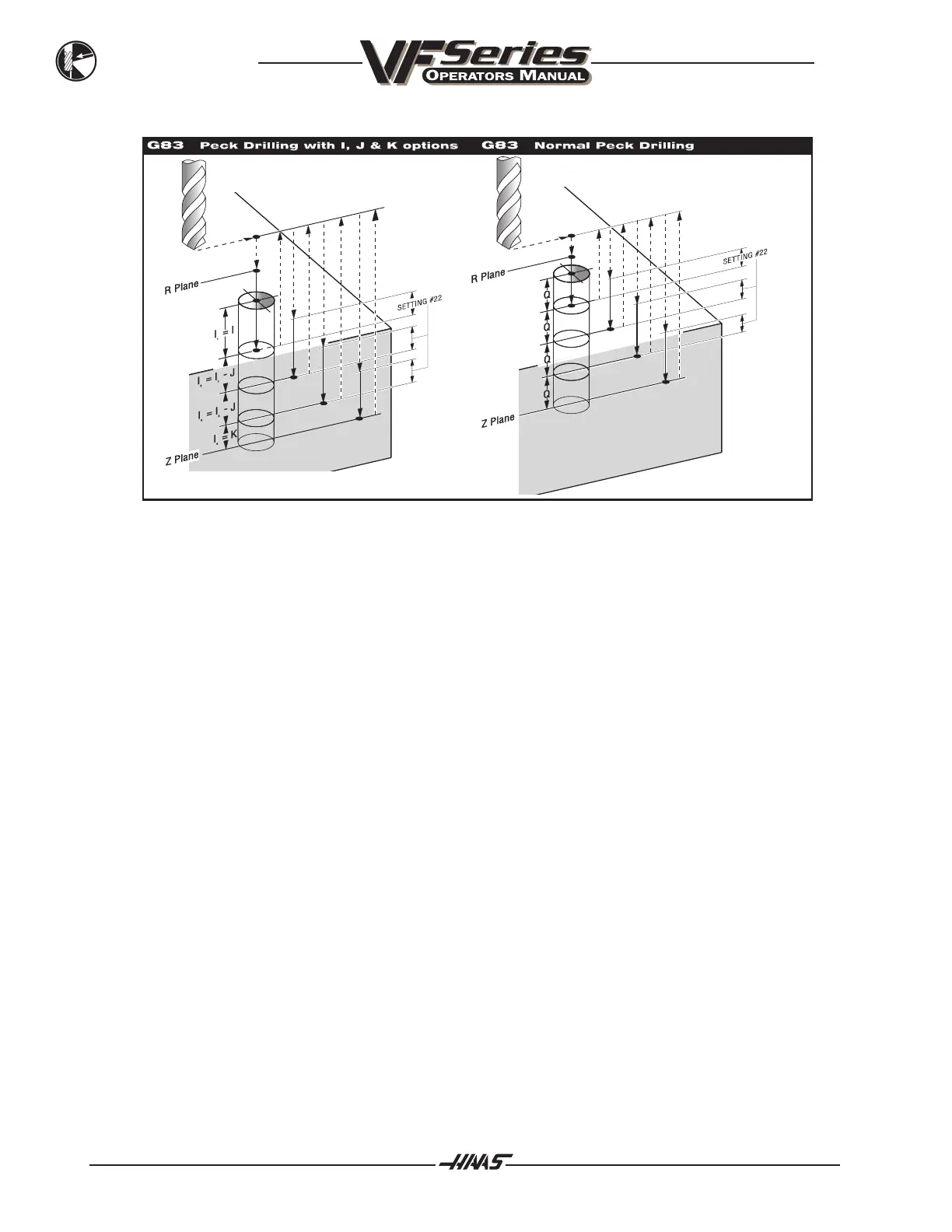

G83 Peck Drilling Canned Cycle Example
T2 M06
(T
ool #2 IS A
.3125 stub drill)
G00 G90 G54 X.565 Y
-1.875 S2500 M03
G43 H02 Z.1 M08
G83 Z-.620 F15. R.1 Q.175
>(Drill point is 1/3 of the drill diameter.)
X1.1
15 Y
-2.750
X3.365 Y
-2.875
X4.188 Y
-3.313
X5.0 Y
-4.0
G00 G80 Z1.0 M09
