ROUND ISLAND:

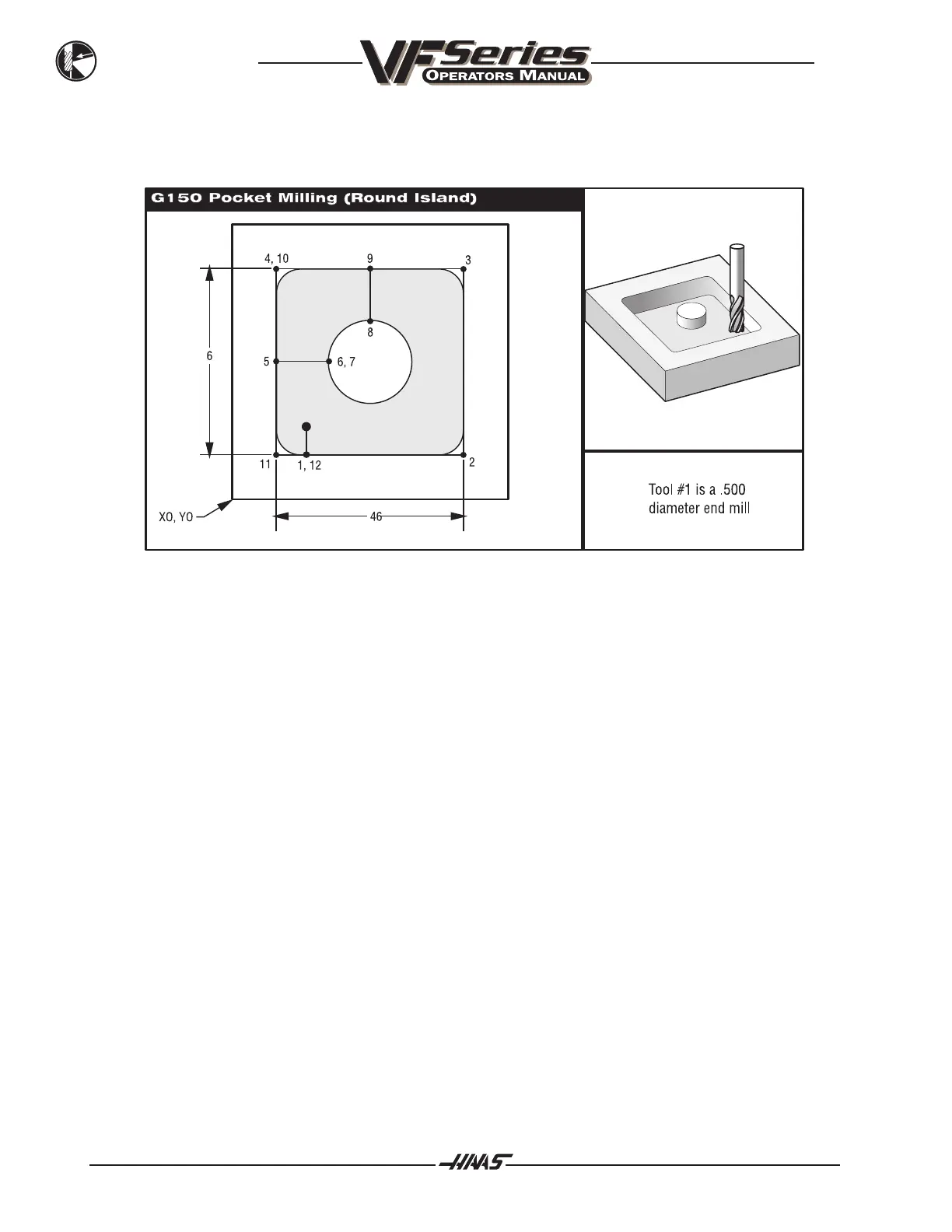

Round island programming exercise using G150.
%
O1000
T1 M06 (Tool is a .500 diameter end mill)
G00 G90 G54 S2500 M03
G43 H01 Z.1 M08
G01 Z0 F10.
G150 X1.0 Y1.0 Z-.5 F15. R.1 Q.25 I.4 K.01 P500 D01 G41
G00 Z1.0 M09
G40 G28 G91 Y0 Z0
M30
%
%
O0500
G01 X0 Y0
X6.0
Y6.0
X0
Y3.0
X2.0
G02 I1.0
G01 X0
Y0
M99
%
