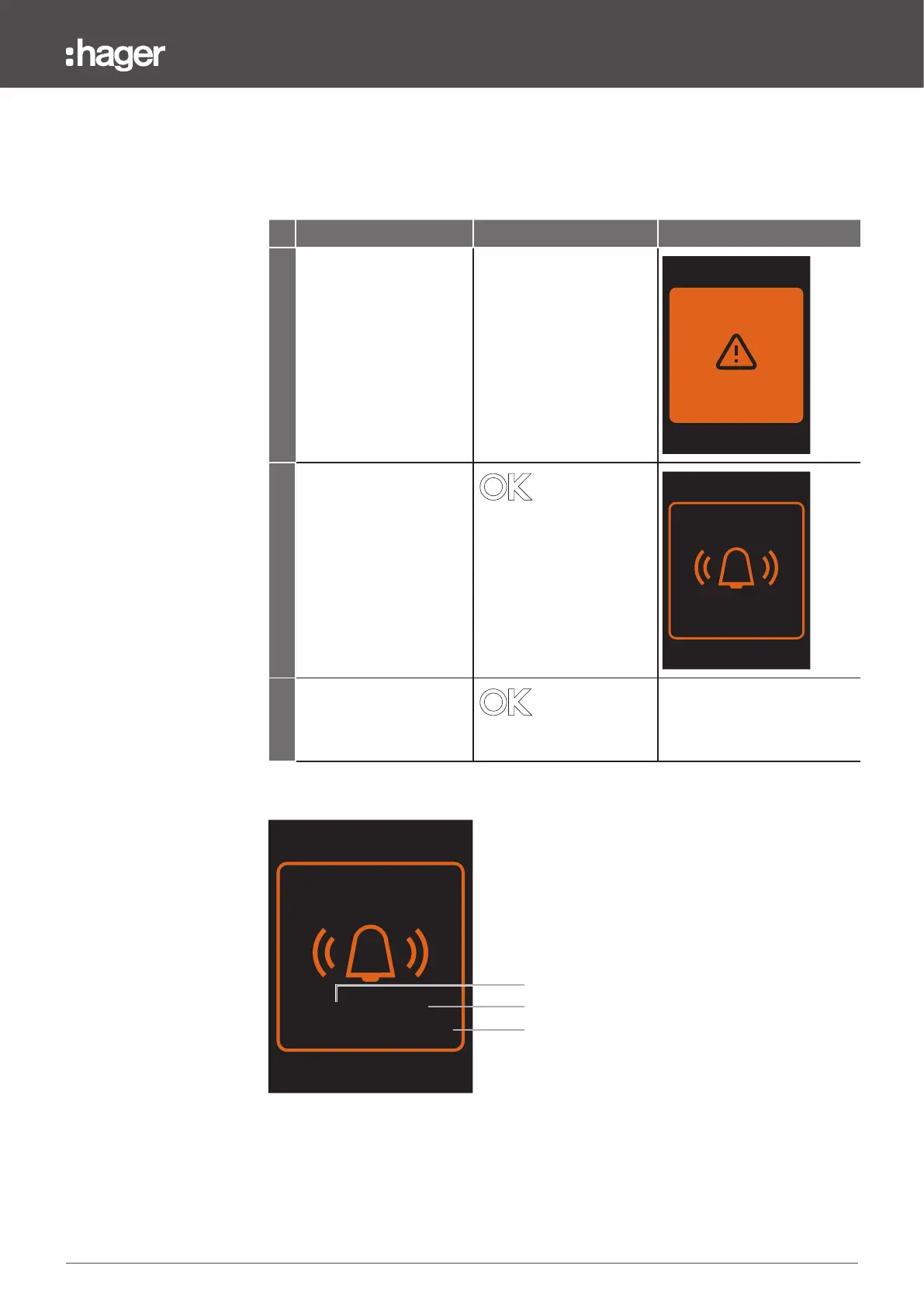

7.7 Voltage monitoring alarms
Voltage dip and swell alarms require the message pop-up to be acknowledged.
Message windows on the sentinel Energy display
Message meaning
Step/Action Button Display
1 When voltage dip and
swell alarms occur, the
following flashing message
window is displayed.
2 Briefly press the trip unit's
OK button to hold the
pop-up and display the
message.
DIP ALARM: 450 V
2022/04/22 - 03/26pm
ADVANCED
3 Do a long press for
more than 3 seconds to
acknowledge and close
the message.
1
Alarm type
2
tripping threshold value
3
date and time the alarm appeared
DIP ALARM: 450 V
2022/04/22 - 03/26pm
ADVANCED
2
1
3
