Control functions
8.5 Forced tripping

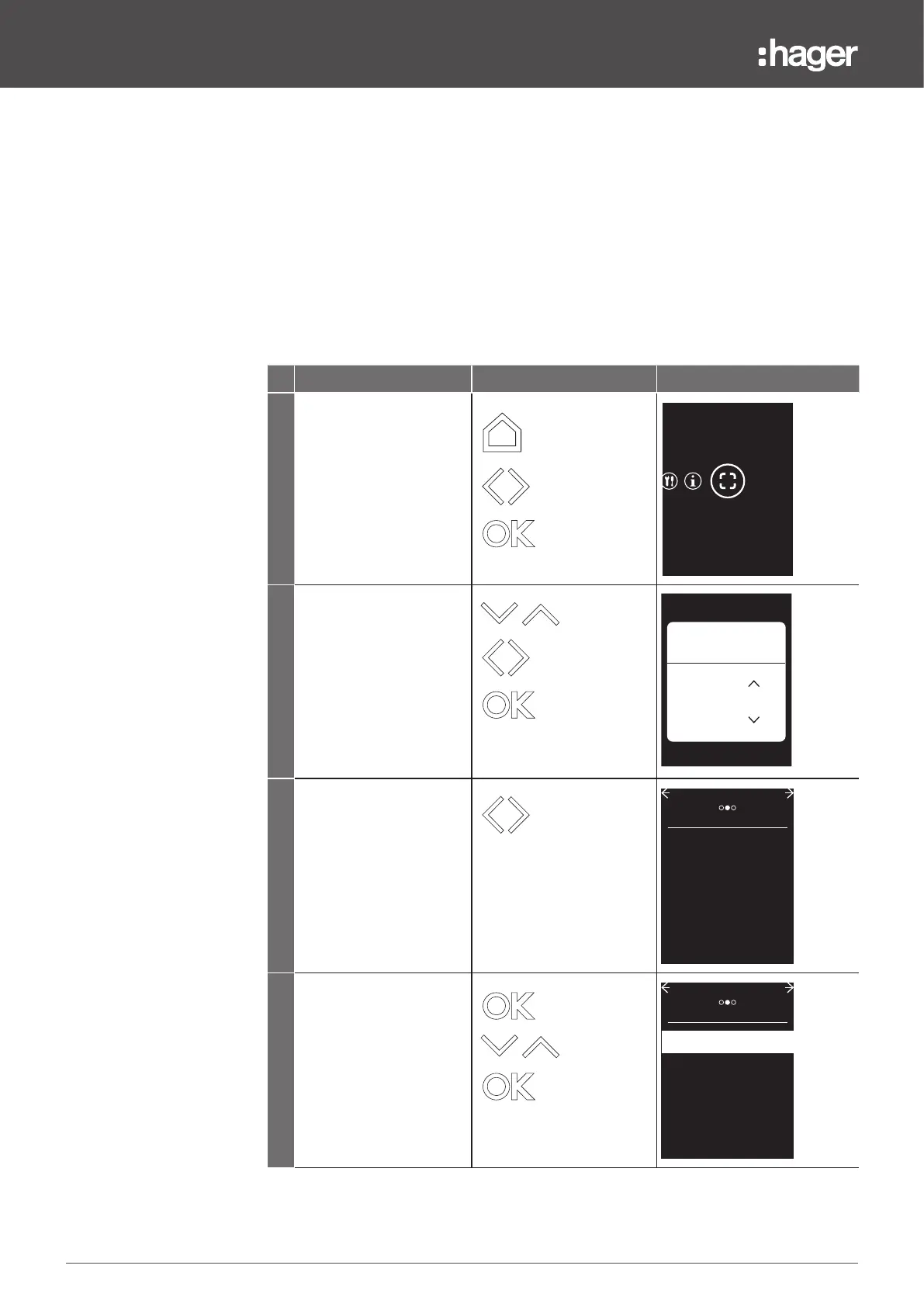

Step/Action Button Display
1 Open the Mode menu.
MODE
2 Enter the password.
Enter the password
4661
3 Select the TRIP
COMMAND submenu.
TRIP COMMAND
MODE
START
Trip
4 Select and validate the
mode desired.
Trip: electromechanical
tripping.
No trip: tripping of the trip
unit only.
TRIP COMMAND
START
MODE
Trip
The Forced Tripping control function allows an electromechanical tripping test to be carried out
on the circuit breaker.
It is programmed for one of the following two modes:
• Tripping: trip to test the entire electromechanical chain of the tripping of the circuit breaker,
• Without tripping: trip the trip unit only to test the electronic part only.
This function is available directly on the sentinel Energy display or using the Hager Power
setup software.
Here is the procedure to carry out a forced tripping on the sentinel Energy display.
