116LE008146B
The sentinel Energy trip unit
2.2 Hager Power setup software
The Hager Power setup software has been designed for testing and commissioning hw+ and
h3+ circuit breakers.
Thanks to the commissioning menu, it is possible to specifically generate a commissioning
report proving that the protection settings comply with the short-circuit and selectivity
calculations. This requires the settings to be imported from the Hagercad software.
It oers a smart way of creating the protection settings. It also allows all the trip unit parameter
settings to be displayed and modified.
It is possible to perform a test of the hw+ circuit breakers tripping curve.
It also allows a forced electro-mechanical tripping of the circuit breakers to be performed.
It is very useful during the test phase when wiring the output contacts. It makes it possible to
force the opening or closing of the OAC, PTA and ZSI output contacts.
The result of the dierent tests can be entered into a test report that can be generated at any
time whether in the wiring workshop or during acceptance tests on site.

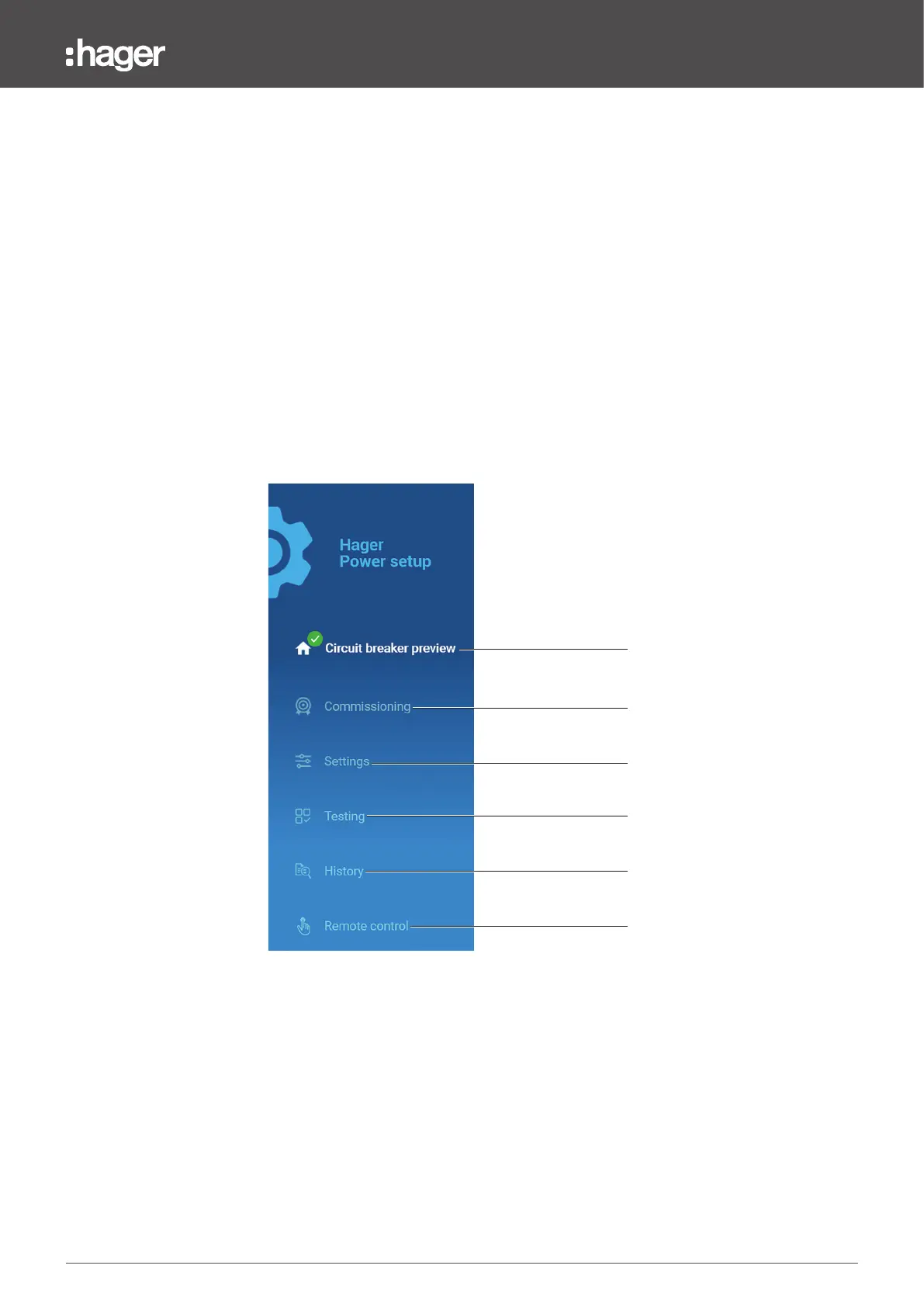

The functions of the Hager Power setup software can be accessed through six menus:
1
Functional state of the circuit breaker, maintenance information and principal technical
characteristics.
2
Three-stage procedure: 1. Setting the protection with verification,
2. Test of the tripping curve,
3. Electromechnical tripping.
Allows a commissioning report to be generated.
3
Access to all the parameter settings of the trip unit.
4
Access to the tripping curve of the manual test, the forced electro-mechanical tripping and activation
of the output contacts available on the circuit breaker. Allows a test report to be generated.
5
Access to events histrory, displays of active alarms, operating counters dashboard.
6
Access to remote controls available on the circuit breaker: remote opening and closing, switching
between protection profiles, inhibition of advanced protections.
1
2
3
4
5
6
