Control functions
8.3 Inhibition of advanced protections
The Inhibition control function momentarily deactivates the eect of advanced protection.
Only advanced protections with the INHIBIT parameter enabled will receive the inhibition
command.
The inhibition can be controlled in three dierent ways:
• from the digital input configured to Inhibit,
• directly on the sentinel Energy display,
• using the Hager Power setup software,
• via Modbus communication.
For information on setting the digital input see Chapter 8.1 Remote reset of the trip unit and
output contacts.

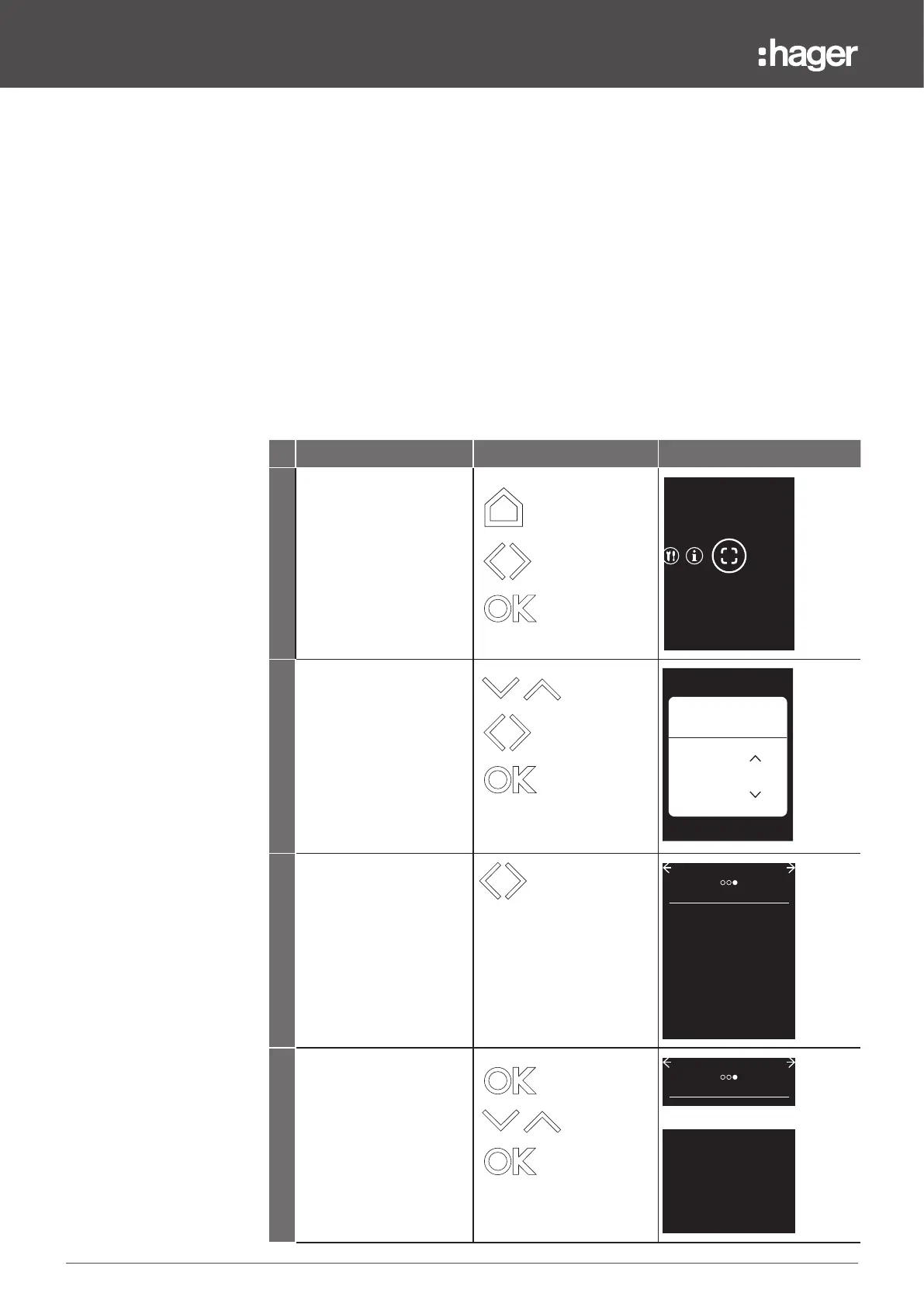

Here is the procedure for using the Inhibition control function on the sentinel Energy display.
Step/Action Button Display
1 Open the Mode menu.
MODE
2 Enter the password.
Enter the password
4661
3 Select the ADVANCED
PROTECTION submenu.
ADVANCED PROTECTION
INHIBIT
O
4 Activate the Inhibition
function.
ADVANCED PROTECTION
INHIBIT
On
