hager hw+ User Manual

16 6LE008146B
The sentinel Energy trip unit
2.4 Communication accessories

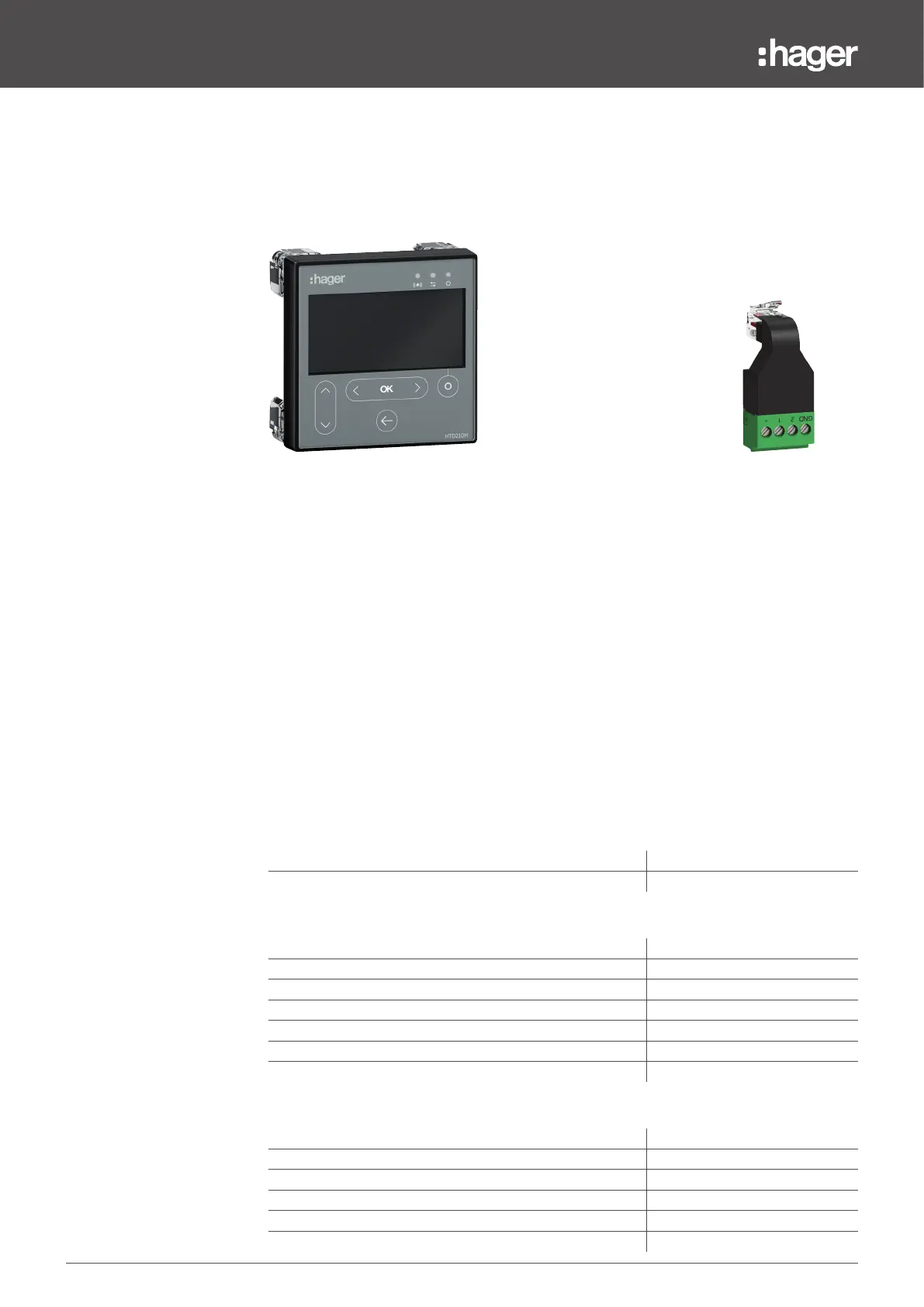

HTD210H panel display
The HTD210H display shows the following:
- the protection parameters
- the measured values
- the alarm management parameters
- the optional alarm and trip histories
- the circuit breaker's status and identification information.
It allows the following to be changed:
- the circuit breaker protection parameters
- the measurement parameters
- the date and time
- the optional alarms and overload prealarms.
It also allows the minimum/maximum measurement counters to be reset and the optional
alarm and trip logs to be erased.
For more information on use of the panel display
HTD210H, refer to the HTD210H panel display user manual 6LE002999A.
HWY210H adapter
The HTD210H panel display allows the state, measurement and setting information on a cover
of the electrical assembly to be displayed.
It also allows the main protection and alarm settings to be changed.
The HWY210H adapter is necessary to connect the CIP cable pair from the circuit breaker
to supply 24 V DC power to the HTD210H panel display. The same 24 V DC external power
supply must be used to supply power to the 24 V TU terminal block on the circuit breaker.
Electrical characteristics
Rated DC supply voltage 24 V (+/- 30%) SELV
Current consumption 85 mA
 
Environmental and mechanical characteristics
Operating temperature range -10 °C…+55 °C
Storage temperature -20 °C…+70 °C
Pollution degree 2
Installation category III
IP class of front side IP65
IP class of back side IP20
Mechanical protection (front face) IK07
 
Physical characteristics
Dimensions L x H x D 97 x 97 x 46 mm
Panel/door cut-out dimensions 92 x 92 millimeters
Weight 165 g
Display dimensions 37 x 78 millimeters
Type of connector RJ9
Cable length max. 10 m
