20 6LE008146B
Navigation and menus
3.2 Navigation in the tree

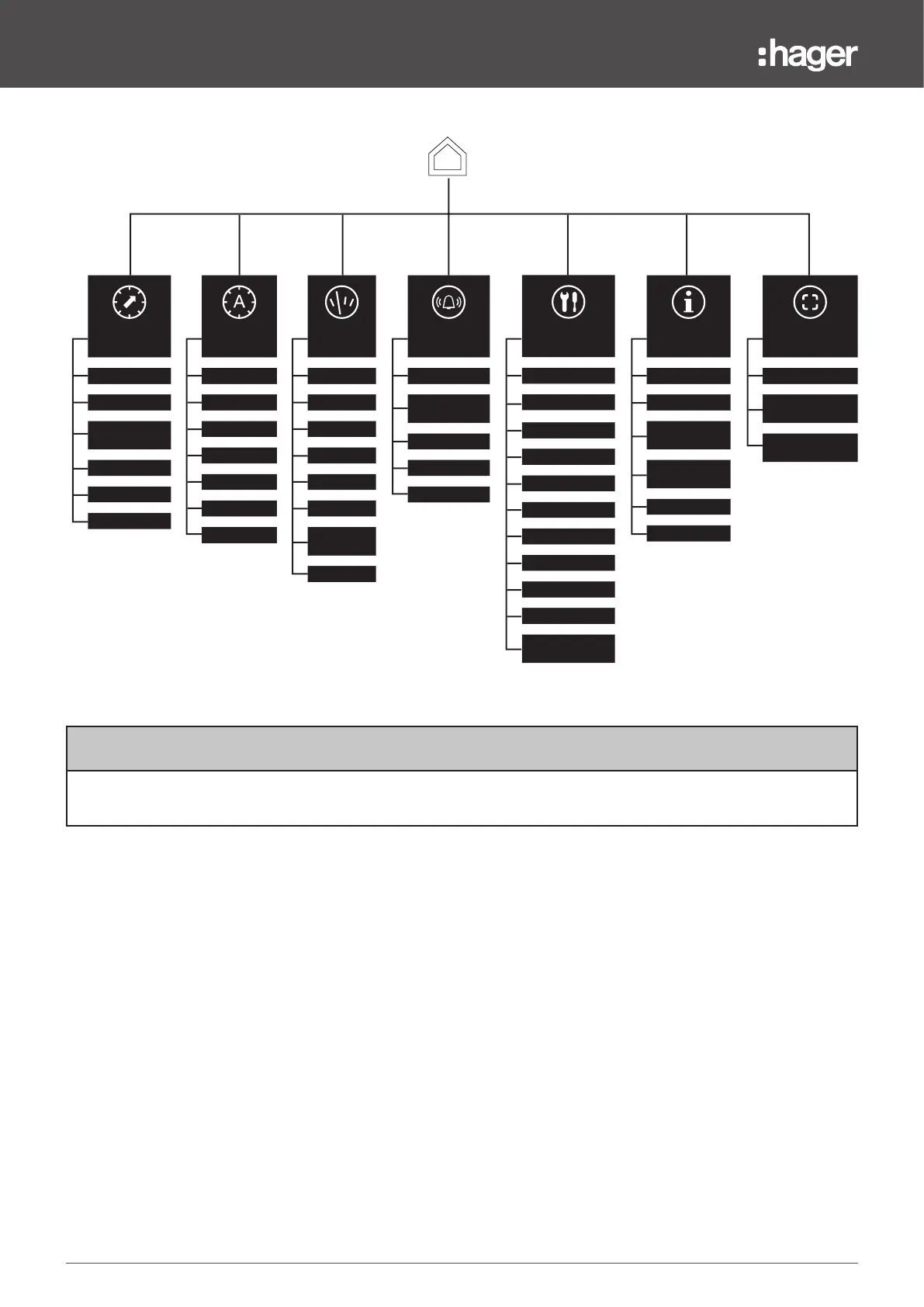

Tree structure:
ADVANCED
PROTECTION
UV-27
OV-59
UF-81L
OF-81H
RP-32R
UNBC-46
UNBV-47
MEASURE
VOLTAGE
CURRENT
FREQUENCY
POWER
ENERGY
DEMAND
POWER
FACTOR
THD
ALARMS
PREALARMS
CUSTOM
ALARMS
DIP ALARM
SWELL ALARM
HWF ALARM
INFORMATION
STATUS
ALARMS LIST
ALARM
HISTORY
TRIP HISTORY
COM STATUS
IDENTIFICATION
MODE
PROTECTION
TRIP COMMAND
ADVANCED
PROTECTION
PROTECTION
LONG TIME
SHORT TIME
INSTANTANE-
OUS
EARTH
NEUTRAL
PROTECTION B
ATTENTION
The protection, alarm and configuration parameters can be protected from change by the trip unit's password. Changing the
language and setting brightness remain available without a password.
CONFIGURATION
LANGUAGE
DISPLAY
DATE & TIME
OVERVIEW
AUTHORISATION
NETWORK
MEASURE
COMMUNICATION
OAC MODULE
DIGITAL INPUT
RESET &
ERASURE
