3.4 Live mode

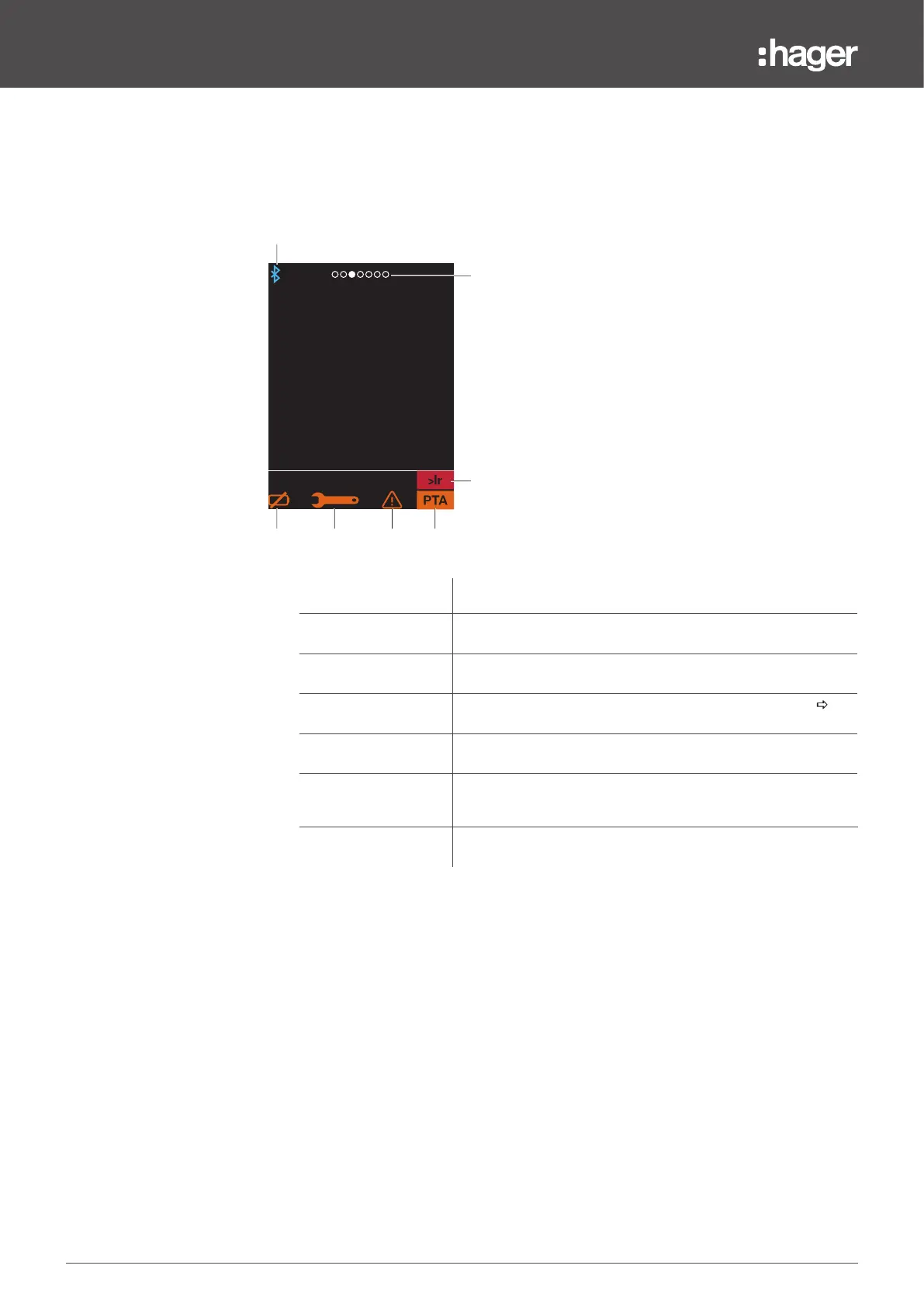

The top and bottom of the views selected in Live mode are reserved for display of a position
marker in the scrolling sequence, Bluetooth activation and alarm notifications.
LONG TIME
Ir
640A
Ir
0.5str
Thi
CURVE
1
2 3 4 5
6
7
1
Bluetooth appears as soon as the Bluetooth connection is activated.
2
Low or missing battery
indicator alarm
displayed if the sentinel Energy trip unit backup battery needs to be
changed or is not connected.
3
Maintenance alarm
indicator
displayed when maintenance is required.
4
System alarm indicator
appears when a system alarm is present and the INFORMATION
ALARM HISTORY menu has not been viewed yet.
5
Overload prealarm alarm
indicator
appears when the current crosses the PTA 1 threshold. Allows
warnings about a risk of imminent overload.
6
Overload alarm indicator flashes when the current exceeds 105% of Ir and is constant when
above 112.5% of Ir. Allows you to be alerted to an imminent risk of
tripping.
7
View marker indicates the positioning order of the screen in the view sequence.
Indications and notification in Live mode
